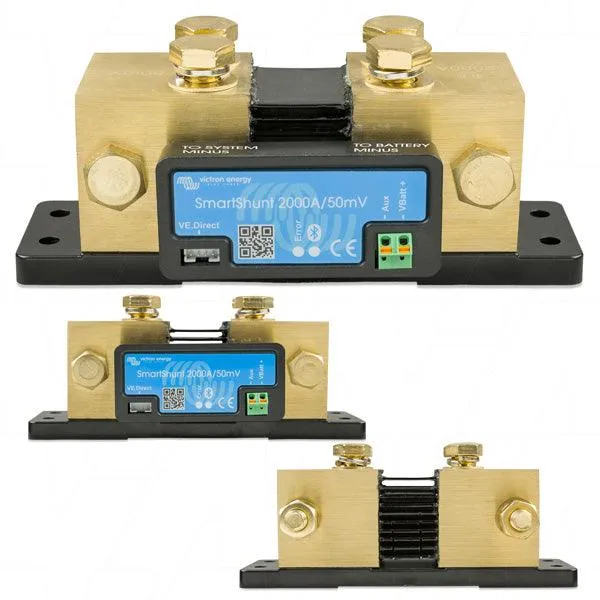

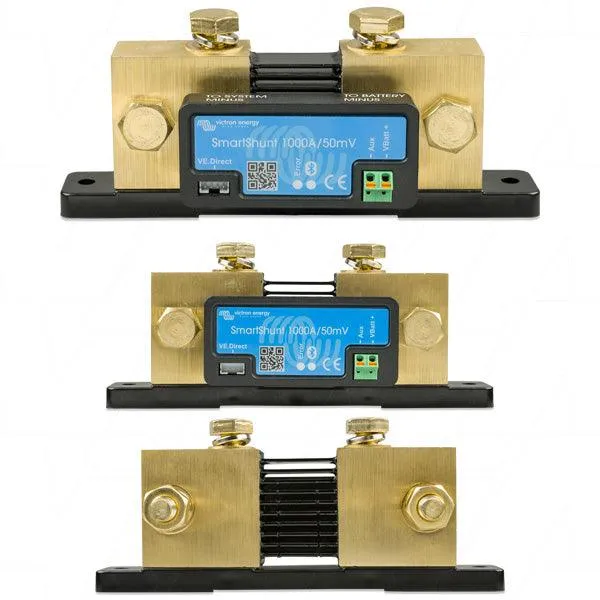

The Smart Battery Shunt

The Smart Shunt is an all in one battery monitor, only without a display. Your phone acts as the display.

The Smart Shunt connects via Bluetooth to the Victron Connect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively the Smart Shunt can be connected and be read by a GX device, connected via a VE. Direct cable.

The Smart Shunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The Smart Shunt is equipped with Bluetooth, a VE. Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Differences compared to
- No programmable visual and audible alarm.
- No programmable relay.

Specifications:

• Supply voltage range: 6,5 - 70 VDC
• Current draw: < 1mA
• Input voltage range: auxiliary battery 6,5 - 70 VDC
• Battery capacity: (Ah) 1 - 9999 Ah
• Operating temperature range: -40 50°C (-40 - 120°F)
• IP22 Rated

• Measures voltage of second battery, or temperature, or midpoint: Yes
• Temperature measurement range: -20 50°C
• VE .Direct communication port: Yes
