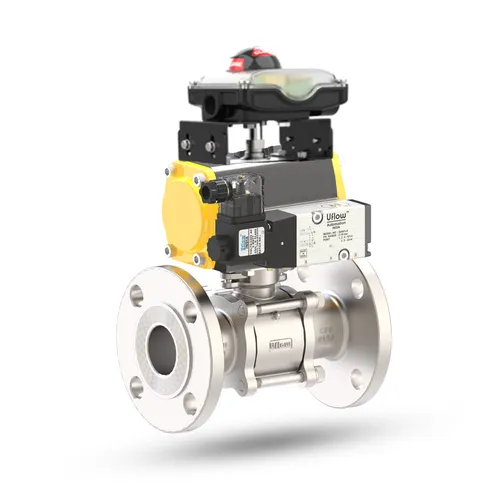

The Uflow 4 Inch (100mm) SS304 Pneumatic Ball Valve with flanged ends, Solenoid Valve (230V AC), and Limit Switch (2NO-NC) is an industrial-grade solution designed for precise automation and control. Engineered with high-quality SS304 material and PTFE seats, this valve ensures exceptional durability, corrosion resistance, and leak-proof performance. Its advanced features make it an ideal choice for applications in chemical, water treatment, and process industries.

Key Features:

• Robust Construction:
  • Valve body, stem, and ball made from corrosion-resistant SS304 (CF8).
  • PTFE seats for leak-proof sealing and chemical resistance.
  • Flanged end connection for secure and reliable installations.
• High-Performance Pneumatic Actuator:
  • Aluminum extruded body with hard-anodized corrosion resistance.
  • Compact, maintenance-free rack-and-pinion design for smooth operation.
  • Low air consumption and high torque output for efficiency.
• Namur Solenoid Valve (230V AC):
  • Compact cartridge-type design for extended service life.
  • Fast response time, up to 1500 cycles per minute.
  • Manual override for operational flexibility during maintenance.
• Limit Switch (2NO-NC):
  • Compact and weatherproof design for rugged environments.
  • Dome indicator with transparent cover for clear open/close status.
  • Dual-contact (2NO-NC) configuration for advanced feedback and monitoring.
• Exceptional Performance:
  • Full port bore minimizes pressure drop for optimized flow efficiency.
  • Precision-machined ball for bubble-tight shut-off with low operating torque.
• Compliance with Standards:
  • Adheres to ASME B16.10, B16.25, B16.34, API 598, BS EN ISO 17292, and ISO 5211 standards.

Specifications:

• Valve Size: 4″ BSP
• Actuator Size: 100
• End Connection: Flanged End
• Pressure Class: #150
• Body Material: SS304 (CF8)
• Seat Material: PTFE
• Bore: Full Port
• Limit Switch Contact: 2NO-NC
• Solenoid Valve Voltage: 230V AC
• Cycle Time: Up to 1500 cycles/min
• Temperature Range: -20°C to 80°C

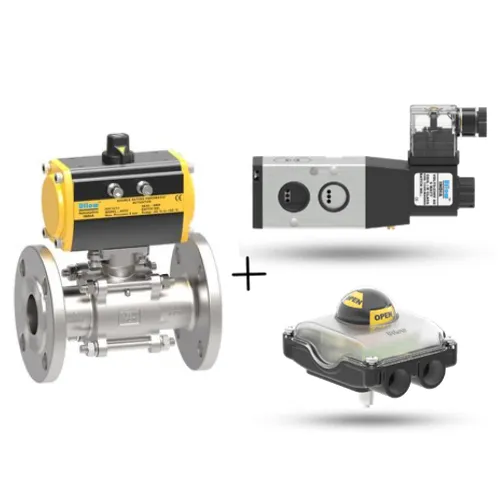

Box Including:

• 1x Uflow 4″ SS304 Pneumatic Ball Valve (Flanged End)
• 1x Pneumatic Rotary Actuator (Size: 100)
• 1x Namur Solenoid Valve (230V AC)
• 1x Limit Switch (2NO-NC)
• Installation manual and operation guide

Applications:

• Chemical and petrochemical processing
• Water and wastewater treatment plants
• Food and pharmaceutical industries
• HVAC systems for flow control
• Oil and gas automation systems
