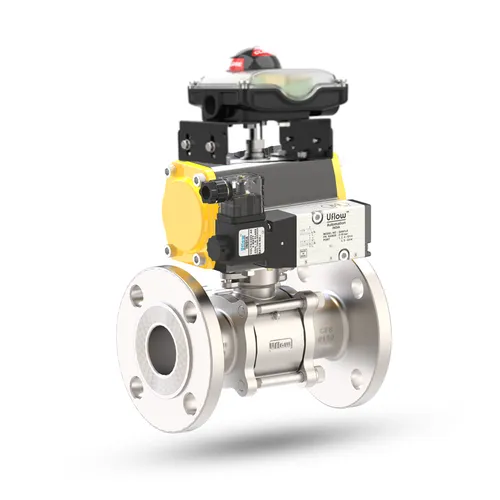

The Uflow 3/4 Inch (20mm) SS304 Pneumatic Ball Valve with Flanged End, Solenoid Valve (24V DC), and Limit Switch (1NO-NC) is a versatile and reliable automation solution for industrial fluid control systems. Engineered with SS304 (CF8) construction and a durable PTFE seat, this valve offers excellent corrosion resistance, bubble-tight sealing, and long-lasting performance. The addition of a compact Namur Solenoid Valve and a weatherproof Limit Switch enhances precision, control, and ease of operation, making it an ideal choice for automated setups.

Key Features:

• High-Quality Construction:
  • SS304 (CF8) body, stem, and ball ensure durability and corrosion resistance.
  • PTFE seat provides reliable sealing and minimizes wear during operation.
  • 3-piece twin-seal ball valve design simplifies maintenance and enhances longevity.
• Efficient Pneumatic Actuator:
  • Aluminum extruded, hard-anodized body for excellent corrosion resistance.
  • Compact, maintenance-free rack and pinion design for smooth operation.
  • Low air consumption and high torque output for energy-efficient performance.
  • Finer teeth module ensures jerk-free, precise actuation.
• Integrated Automation Components:
  • Limit Switch: Lightweight and weatherproof with an open/close indication dome and 1NO-NC contact for accurate position monitoring.
  • Namur Solenoid Valve: Operates on 24V DC, featuring a durable cartridge design for long-lasting reliability, fast response times (up to 1500 cycles/min), and manual override for flexibility.
• Superior Performance:
  • Full-port design minimizes pressure drop while maximizing flow efficiency.
  • Precision-machined, mirror-finished ball ensures bubble-tight shutoff with minimal torque requirements.
• Compliance with Standards:
  • Meets ASME B16.10, B16.25, B16.34, B16.5, API 598, BS EN ISO 17292, and ISO 5211 standards for global compatibility.

Specifications:

• Valve Size: 3/4″ BSP
• Actuator Size: 32
• End Connection: Flanged End
• Pressure Class: #150
• Body Material: SS304 (CF8)
• Seat Material: PTFE
• Bore: Full Bore
• Limit Switch Contact: 1NO-NC
• Solenoid Valve Voltage: 24V DC
• Cycle Time: Up to 1500 cycles/min
• Temperature Range: -20°C to 80°C

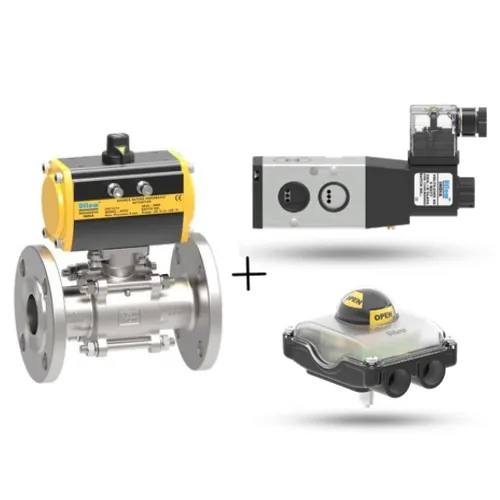

Box Including:

• 1x Uflow 3/4″ SS304 Pneumatic Ball Valve (Flanged End)
• 1x Pneumatic Rotary Actuator (Size: 32)
• 1x Namur Solenoid Valve (24V DC)
• 1x Compact Limit Switch (1NO-NC)
• Installation manual and user guide

Applications:

• Industrial fluid and gas control systems
• Water and wastewater treatment facilities
• Chemical and petrochemical processing plants
• HVAC systems for automated flow regulation
• Food and pharmaceutical production environments
