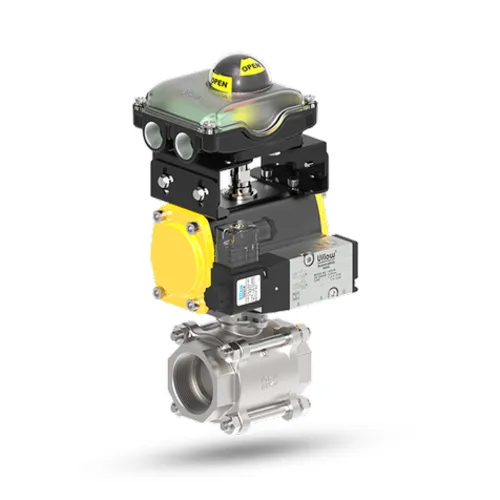

The Uflow 3/4 Inch (20mm) SS304 Pneumatic Ball Valve with Screwed End, Solenoid Valve (230V AC), and Limit Switch (1NO-NC) is an industrial-grade automation solution designed for precision and reliability. Manufactured with high-quality SS304 (CF8) and a PTFE seat, this valve delivers exceptional corrosion resistance, bubble-tight sealing, and long-lasting performance. The compact pneumatic rotary actuator, integrated Namur Solenoid Valve, and weatherproof Limit Switch ensure seamless operation and accurate feedback in demanding industrial environments.

Key Features:

• Durable Construction:
  • SS304 (CF8) body, stem, and ball for superior corrosion resistance and durability.
  • PTFE seat ensures reliable sealing and minimizes wear.
  • 3-piece twin-seal design simplifies maintenance and enhances reliability.
• Pneumatic Rotary Actuator:
  • Aluminum extruded, hard-anodized body for excellent corrosion resistance.
  • Compact, maintenance-free rack and pinion design for smooth, efficient operation.
  • Low air consumption and high torque output for energy efficiency.
  • Finer teeth module ensures precise, jerk-free actuation.
• Integrated Automation Components:
  • Limit Switch: Lightweight and weatherproof with an open/close indication dome and 1NO-NC contact configuration for accurate position monitoring.
  • Namur Solenoid Valve: Compact cartridge design operating at 230V AC, with fast response times (up to 1500 cycles/min) and manual override for operational flexibility.
• Performance Excellence:
  • Full-port design reduces pressure loss and maximizes flow efficiency.
  • Precision-machined, mirror-finished ball delivers bubble-tight shutoff with minimal operating torque.
• Standards Compliance:
  • Meets ASME B16.10, B16.25, B16.34, B16.5, API 598, BS EN ISO 17292, and ISO 5211 standards for global reliability.

Specifications:

• Valve Size: 3/4″ BSP
• Actuator Size: 32
• End Connection: Screwed End
• Pressure Class: #150
• Body Material: SS304 (CF8)
• Seat Material: PTFE
• Bore: Full Bore
• Limit Switch Contact: 1NO-NC
• Solenoid Valve Voltage: 230V AC
• Cycle Time: Up to 1500 cycles/min
• Temperature Range: -20°C to 80°C

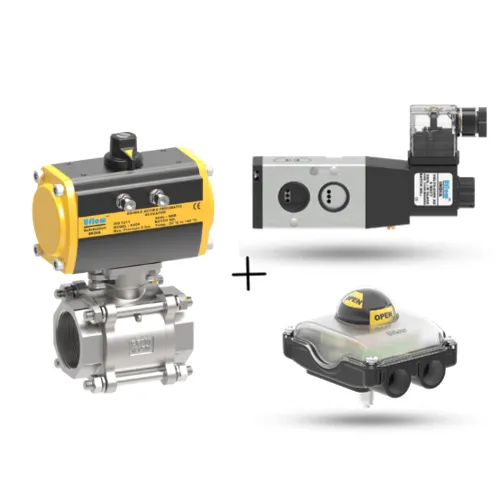

Box Including:

• 1x Uflow 3/4″ SS304 Pneumatic Ball Valve (Screwed End)
• 1x Pneumatic Rotary Actuator (Size: 32)
• 1x Namur Solenoid Valve (230V AC)
• 1x Compact Limit Switch (1NO-NC)
• Installation manual and user guide

Applications:

• Industrial fluid and gas control systems
• Water and wastewater treatment facilities
• Chemical and petrochemical processing industries
• HVAC systems for automated flow regulation
• Food and pharmaceutical manufacturing
