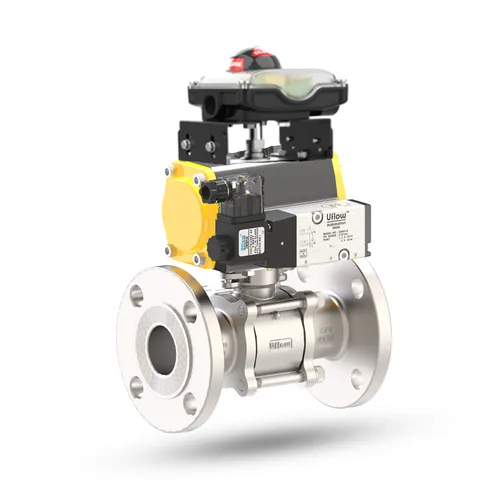

The Uflow 3/4 Inch (20mm) SS304 Pneumatic Ball Valve with Flanged End, Solenoid Valve (12V DC), and Limit Switch (2NO-NC) is a premium automation solution designed for industrial fluid control. Featuring a robust SS304 (CF8) body, stem, and ball, coupled with a PTFE seat, this valve ensures excellent corrosion resistance, bubble-tight sealing, and long-lasting durability. The integration of a pneumatic rotary actuator, Namur Solenoid Valve, and Limit Switch provides seamless operation, precise control, and reliable feedback, making it ideal for demanding applications.

Key Features:

• Durable Construction:
  • SS304 (CF8) body, stem, and ball for superior corrosion resistance and durability.
  • PTFE seat delivers reliable sealing and extended service life.
  • 3-piece twin-seal ball valve design simplifies maintenance.
• Efficient Pneumatic Actuator:
  • Aluminum extruded, hard-anodized body for corrosion protection.
  • Compact, wear-proof rack and pinion design ensures smooth and efficient operation.
  • Low air consumption and maximum torque output for energy efficiency.
  • Finer teeth module guarantees jerk-free and precise actuation.
• Advanced Automation Components:
  • Limit Switch: Compact and weatherproof design with open/close indication dome and 2NO-NC contact configuration for accurate position monitoring.
  • Namur Solenoid Valve: Operates on 12V DC, featuring a compact cartridge design for long life, fast response times (up to 1500 cycles/min), and manual override for added flexibility.
• Performance Excellence:
  • Full-port design reduces pressure drop and maximizes flow efficiency.
  • Precision-machined, mirror-finished ball ensures bubble-tight shutoff with minimal torque.
• Compliance with Standards:
  • Meets ASME B16.10, B16.25, B16.34, B16.5, API 598, BS EN ISO 17292, and ISO 5211 standards for global reliability.

Specifications:

• Valve Size: 3/4″ BSP
• Actuator Size: 32
• End Connection: Flanged End
• Pressure Class: #150
• Body Material: SS304 (CF8)
• Seat Material: PTFE
• Bore: Full Bore
• Limit Switch Contact: 2NO-NC
• Solenoid Valve Voltage: 12V DC
• Cycle Time: Up to 1500 cycles/min
• Temperature Range: -20°C to 80°C

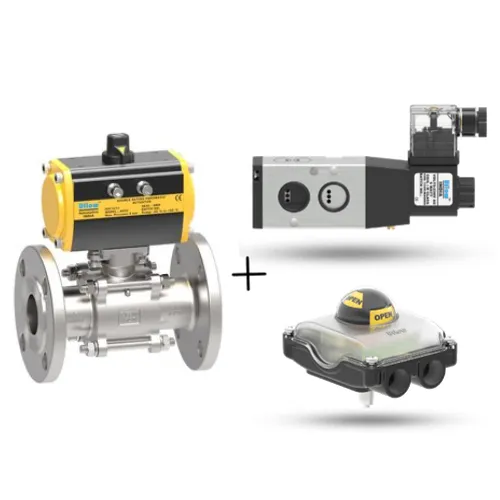

Box Including:

• 1x Uflow 3/4″ SS304 Pneumatic Ball Valve (Flanged End)
• 1x Pneumatic Rotary Actuator (Size: 32)
• 1x Namur Solenoid Valve (12V DC)
• 1x Compact Limit Switch (2NO-NC)
• Installation manual and user guide

Applications:

• Industrial fluid and gas control systems
• Chemical and petrochemical processing plants
• Water and wastewater management facilities
• HVAC systems for automated flow regulation
• Food and pharmaceutical production environments
