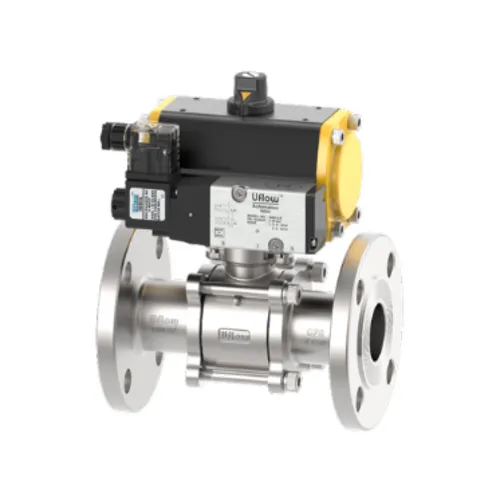

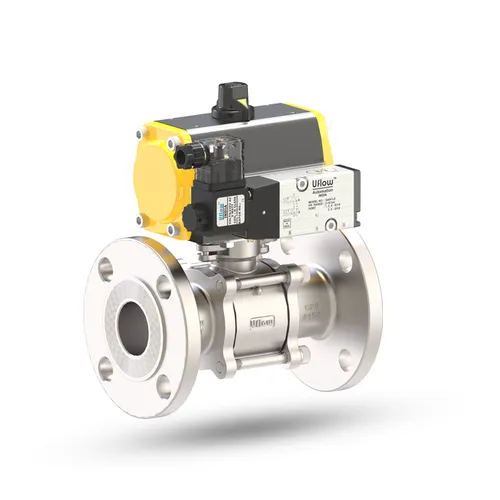

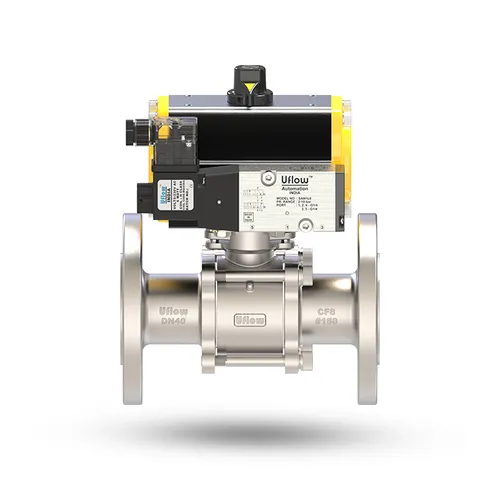

The Uflow 3/4 Inch (20mm) SS304 Pneumatic Ball Valve with Flanged End, Solenoid Valve (110V AC), and Limit Switch (2NO-NC) is engineered for precise and reliable automated fluid control in industrial applications. Featuring a high-grade SS304 (CF8) body, stem, and ball, along with a PTFE seat, this valve ensures corrosion resistance, durability, and a bubble-tight seal. Its full-port design maximizes flow efficiency, while the integrated pneumatic rotary actuator, Namur Solenoid Valve, and Limit Switch deliver superior performance and seamless automation.

Key Features:

• High-Quality Construction:
  • SS304 (CF8) body, stem, and ball for excellent corrosion resistance and long-lasting durability.
  • PTFE seat ensures tight sealing and minimizes wear.
  • 3-piece twin-seal ball valve design simplifies maintenance.
• Pneumatic Rotary Actuator:
  • Aluminum extruded, hard-anodized body for corrosion resistance.
  • Compact, maintenance-free rack and pinion design for smooth and efficient operation.
  • Low air consumption with high torque ensures energy efficiency.
  • Finer teeth module provides jerk-free, precise actuation.
• Integrated Automation Components:
  • Limit Switch: Compact and weatherproof with open/close indication and 2NO-NC contact configuration for accurate position monitoring.
  • Namur Solenoid Valve: Compact cartridge design operating on 110V AC, offering fast response times (up to 1500 cycles/min) and manual override for flexibility.
• Superior Performance:
  • Full-port design minimizes pressure drop and ensures maximum flow efficiency.
  • Precision-machined, mirror-finished ball delivers bubble-tight shutoff with minimal operating torque.
• Compliance with Standards:
  • Meets ASME B16.10, B16.25, B16.34, B16.5, API 598, BS EN ISO 17292, and ISO 5211 standards for global reliability.

Specifications:

• Valve Size: 3/4″ BSP
• Actuator Size: 32
• End Connection: Flanged End
• Pressure Class: #150
• Body Material: SS304 (CF8)
• Seat Material: PTFE
• Bore: Full Bore
• Limit Switch Contact: 2NO-NC
• Solenoid Valve Voltage: 110V AC
• Cycle Time: Up to 1500 cycles/min
• Temperature Range: -20°C to 80°C

Box Including:

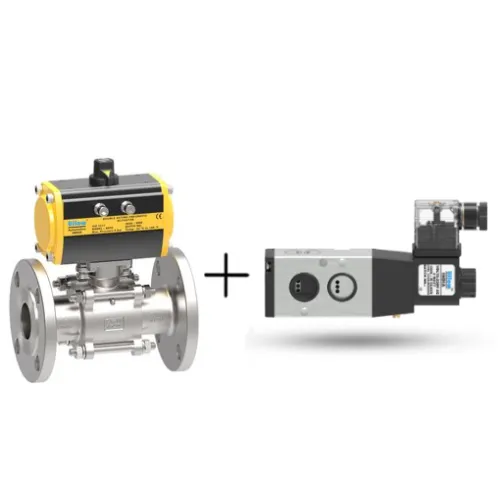

• 1x Uflow 3/4″ SS304 Pneumatic Ball Valve (Flanged End)
• 1x Pneumatic Rotary Actuator (Size: 32)
• 1x Namur Solenoid Valve (110V AC)
• 1x Compact Limit Switch (2NO-NC)
• Installation manual and user guide

Applications:

• Industrial fluid and gas control systems
• Water and wastewater treatment facilities
• Chemical and petrochemical processing plants
• HVAC systems for automated flow regulation
• Food and pharmaceutical manufacturing
