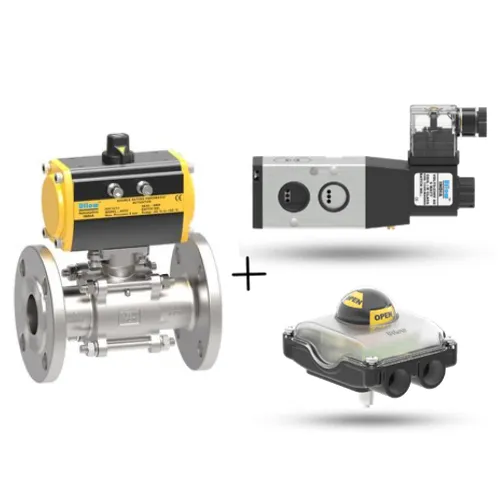

The Uflow 3/4 Inch (20mm) SS304 Pneumatic Ball Valve with Flanged End, Solenoid Valve (110V AC), and Limit Switch (1NO-NC) is a versatile and durable automation solution for industrial fluid control. Built with a robust SS304 (CF8) body, stem, and ball, and equipped with a PTFE seat, this valve ensures excellent corrosion resistance, reliable sealing, and efficient operation. Its compact pneumatic rotary actuator, integrated Namur Solenoid Valve, and weatherproof Limit Switch provide seamless and precise automation for demanding applications.

Key Features:

• Durable Build Quality:
  • SS304 (CF8) body, stem, and ball ensure superior corrosion resistance and long-lasting reliability.
  • PTFE seat delivers exceptional sealing and minimizes wear.
  • 3-piece twin-seal ball valve design provides enhanced durability and maintenance ease.
• Pneumatic Rotary Actuator:
  • Aluminum extruded, hard-anodized actuator body ensures corrosion resistance.
  • Compact, maintenance-free rack and pinion design for smooth operation.
  • Low air consumption and maximum torque for efficient performance.
  • Finer teeth module ensures jerk-free, precise actuation.
• Automation Components:
  • Limit Switch: Lightweight, weatherproof design with open/close indication dome and 1NO-NC contact for accurate position monitoring.
  • Namur Solenoid Valve: Compact cartridge design operating on 110V AC, with fast response times (up to 1500 cycles/min) and manual override for flexibility.
• Performance Excellence:
  • Full-port design minimizes pressure loss while ensuring maximum flow efficiency.
  • Precision-machined, mirror-finished ball ensures bubble-tight shutoff with minimal operating torque.
• Compliance with Standards:
  • Meets ASME B16.10, B16.25, B16.34, B16.5, API 598, BS EN ISO 17292, and ISO 5211 standards for universal compatibility.

Specifications:

• Valve Size: 3/4″ BSP
• Actuator Size: 32
• End Connection: Flanged End
• Pressure Class: #150
• Body Material: SS304 (CF8)
• Seat Material: PTFE
• Bore: Full Bore
• Limit Switch Contact: 1NO-NC
• Solenoid Valve Voltage: 110V AC
• Cycle Time: Up to 1500 cycles/min
• Temperature Range: -20°C to 80°C

Box Including:

• 1x Uflow 3/4″ SS304 Pneumatic Ball Valve (Flanged End)
• 1x Pneumatic Rotary Actuator (Size: 32)
• 1x Namur Solenoid Valve (110V AC)
• 1x Compact Limit Switch (1NO-NC)
• Installation manual and user guide

Applications:

• Industrial fluid and gas control systems
• Water and wastewater management facilities
• Chemical and petrochemical processing industries
• HVAC systems for automated flow regulation
• Food and pharmaceutical manufacturing
