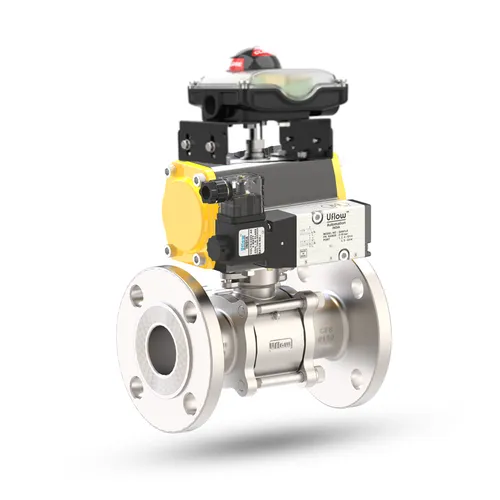

The Uflow 3/4 Inch (20mm) SS304 Pneumatic Ball Valve with Flanged End, Solenoid Valve (110V AC), and Limit Switch (1NO-NC) is a compact yet robust solution for industrial automation and fluid control. Designed with a durable SS304 (CF8) body, stem, and ball, and equipped with a PTFE seat, this valve offers superior corrosion resistance, bubble-tight sealing, and efficient operation. Its 3-piece twin-seal design and full-port construction ensure maximum flow efficiency. Integrated with a reliable pneumatic rotary actuator, Namur Solenoid Valve, and Limit Switch, this valve provides precise and seamless performance.

Key Features:

• Premium Build Quality:
  • SS304 (CF8) body, stem, and ball for excellent corrosion resistance and durability.
  • PTFE seat ensures reliable sealing and extended service life.
  • 3-piece twin-seal design for easy maintenance and enhanced performance.
• Efficient Pneumatic Actuation:
  • Aluminum extruded, hard-anodized actuator body for corrosion resistance and durability.
  • Maintenance-free, wear-proof rack and pinion design for efficient operation.
  • Low air consumption and high torque output for energy efficiency.
  • Finer teeth module for smooth, jerk-free actuation.
• Integrated Automation Components:
  • Limit Switch: Compact and weatherproof with open/close indication and 1NO-NC contact configuration for accurate position monitoring.
  • Namur Solenoid Valve: Compact cartridge design powered by 110V AC with fast response times (up to 1500 cycles/min) and manual override for operational flexibility.
• Performance Excellence:
  • Full-port design minimizes pressure drop while maximizing flow efficiency.
  • Precision-machined, mirror-finished ball provides bubble-tight shutoff with minimal torque requirements.
• Standards Compliance:
  • Adheres to ASME B16.10, B16.25, B16.34, B16.5, API 598, BS EN ISO 17292, and ISO 5211 standards for global reliability and compatibility.

Specifications:

• Valve Size: 3/4″ BSP
• Actuator Size: 32
• End Connection: Flanged End
• Pressure Class: #150
• Body Material: SS304 (CF8)
• Seat Material: PTFE
• Bore: Full Bore
• Limit Switch Contact: 1NO-NC
• Solenoid Valve Voltage: 110V AC
• Cycle Time: Up to 1500 cycles/min
• Temperature Range: -20°C to 80°C

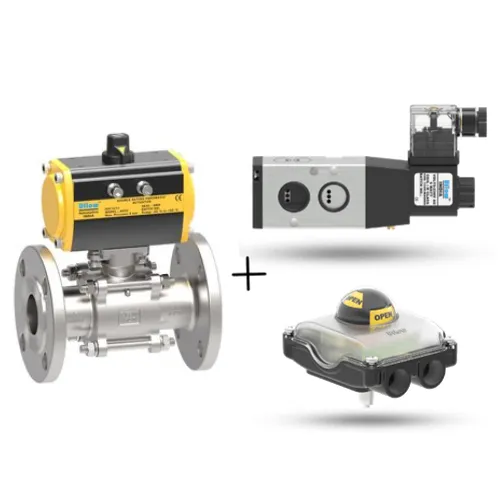

Box Including:

• 1x Uflow 3/4″ SS304 Pneumatic Ball Valve (Flanged End)
• 1x Pneumatic Rotary Actuator (Size: 32)
• 1x Namur Solenoid Valve (110V AC)
• 1x Compact Limit Switch (1NO-NC)
• Installation manual and user guide

Applications:

• Industrial fluid and gas control systems
• Water and wastewater treatment facilities
• Chemical and petrochemical processing plants
• HVAC systems for regulated flow control
• Food and pharmaceutical manufacturing environments
