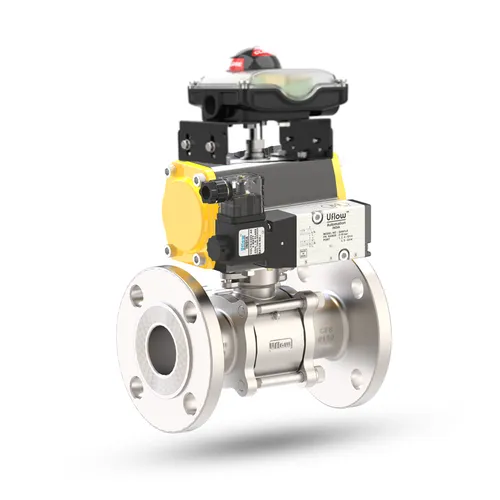

The Uflow 3 Inch (80mm) SS304 Pneumatic Ball Valve with Flanged End, Solenoid Valve (24V AC), and Limit Switch (2NO-NC) is an advanced solution for precision fluid control in industrial systems. Featuring a robust SS304 (CF8) construction and a PTFE seat, this valve ensures superior durability, corrosion resistance, and bubble-tight sealing. Its 3-piece twin-seal design and full-port bore deliver optimal flow efficiency. Enhanced with a compact pneumatic actuator, weatherproof Limit Switch, and fast-response Namur Solenoid Valve, this valve is engineered for reliable, automated performance in demanding applications.

Key Features:

• Durable Construction:
  • SS304 (CF8) body, stem, and ball for excellent corrosion resistance and long-lasting reliability.
  • PTFE seat ensures tight sealing and wear resistance under various conditions.
  • 3-piece twin-seal design offers durability and easy maintenance.
• Efficient Pneumatic Actuator:
  • Aluminum extruded, hard-anodized body for superior corrosion protection.
  • Maintenance-free rack and pinion design ensures smooth and efficient operation.
  • Low air consumption with maximum torque output.
  • Finer teeth module guarantees jerk-free movement and precise control.
• Advanced Automation:
  • Limit Switch: Lightweight, weatherproof design with a transparent dome for open/close indication, equipped with 2NO-NC contacts for accurate monitoring.
  • Namur Solenoid Valve: Compact cartridge design for long service life, operating at 24V AC with fast response times (up to 1500 cycles/min) and manual override for added flexibility.
• Performance Excellence:
  • Full-port design minimizes pressure loss while ensuring maximum flow.
  • Precision-machined, mirror-finished ball ensures bubble-tight shutoff with reduced operating torque.
• Compliance with Standards:
  • Conforms to ASME B16.10, B16.25, B16.34, B16.5, API 598, BS EN ISO 17292, and ISO 5211 standards.

Specifications:

• Valve Size: 3″ BSP
• Actuator Size: 80
• End Connection: Flanged End
• Pressure Class: #150
• Body Material: SS304 (CF8)
• Seat Material: PTFE
• Bore: Full Bore
• Limit Switch Contact: 2NO-NC
• Solenoid Valve Voltage: 24V AC
• Cycle Time: Up to 1500 cycles/min
• Temperature Range: -20°C to 80°C

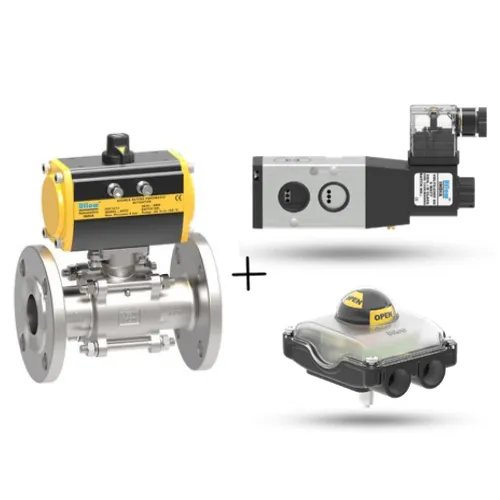

Box Including:

• 1x Uflow 3″ SS304 Pneumatic Ball Valve (Flanged End)
• 1x Pneumatic Rotary Actuator (Size: 80)
• 1x Namur Solenoid Valve (24V AC)
• 1x Compact Limit Switch (2NO-NC)
• Installation manual and user guide

Applications:

• Industrial fluid and gas control systems
• Water and wastewater management facilities
• Chemical and petrochemical processing industries
• HVAC systems for regulated flow control
• Food and pharmaceutical manufacturing
