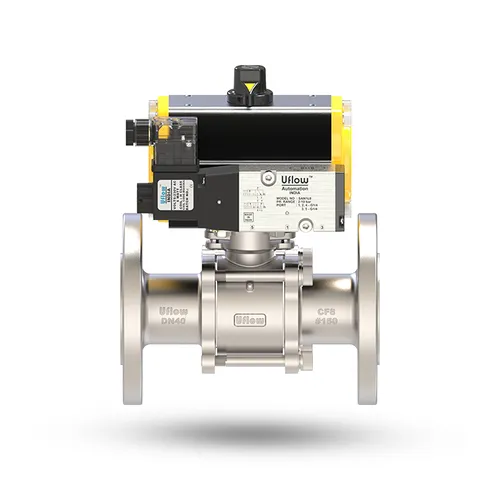

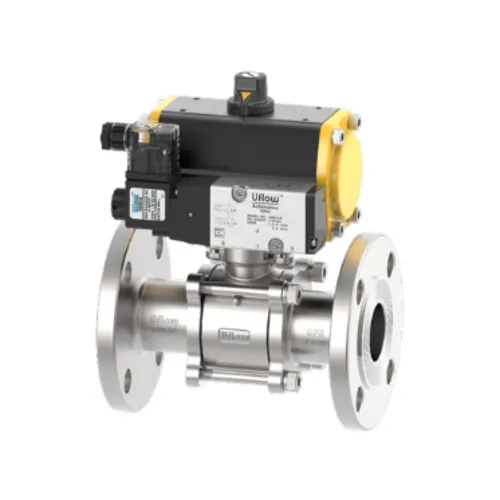

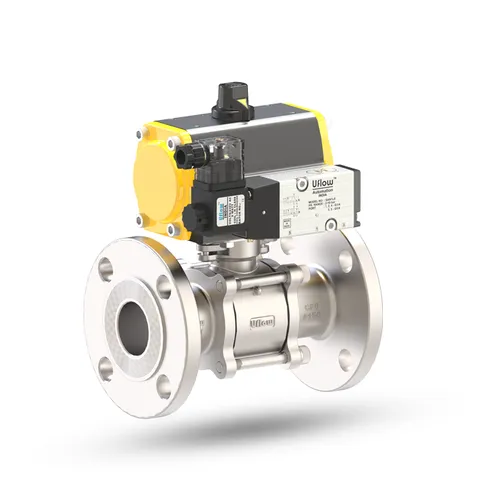

The Uflow 3 Inch (80mm) SS304 Pneumatic Ball Valve with Flanged End, Solenoid Valve (24V AC), and Limit Switch (2NO-NC) is engineered for seamless automation and efficient fluid control in industrial applications. Featuring a robust SS304 (CF8) body, stem, and ball, combined with a durable PTFE seat, this valve ensures superior corrosion resistance, bubble-tight sealing, and long-lasting reliability. The 3-piece twin-seal design and full-port construction maximize flow efficiency. Integrated with a pneumatic rotary actuator, Namur Solenoid Valve, and Limit Switch, this valve provides precise control and accurate feedback for demanding environments.

Key Features:

• Durable Construction:
  • SS304 (CF8) body, stem, and ball for exceptional corrosion resistance and strength.
  • PTFE seat delivers excellent sealing and wear resistance for long-term operation.
  • 3-piece twin-seal design enhances durability and facilitates easy maintenance.
• Pneumatic Rotary Actuator:
  • Aluminum extruded, hard-anodized body for high corrosion resistance.
  • Compact, wear-proof rack and pinion design ensures smooth operation.
  • Low air consumption and high torque output for energy-efficient performance.
  • Finer teeth module ensures jerk-free, smooth travel.
• Automation Components:
  • Limit Switch: Compact, weatherproof design with clear open/close indication and 2NO-NC contact configuration for accurate monitoring.
  • Namur Solenoid Valve: Operates on 24V AC, providing fast response times (up to 1500 cycles/min), compact cartridge design, and manual override for operational flexibility.
• Performance Excellence:
  • Full-port design ensures minimal pressure drop and maximum flow capacity.
  • Precision-machined, mirror-finished ball ensures bubble-tight shutoff with low operating torque.
• Standards Compliance:
  • Conforms to ASME B16.10, B16.25, B16.34, B16.5, API 598, BS EN ISO 17292, and ISO 5211 standards for global reliability.

Specifications:

• Valve Size: 3″ BSP
• Actuator Size: 80
• End Connection: Flanged End
• Pressure Class: #150
• Body Material: SS304 (CF8)
• Seat Material: PTFE
• Bore: Full Bore
• Limit Switch Contact: 2NO-NC
• Solenoid Valve Voltage: 24V AC
• Cycle Time: Up to 1500 cycles/min
• Temperature Range: -20°C to 80°C

Box Including:

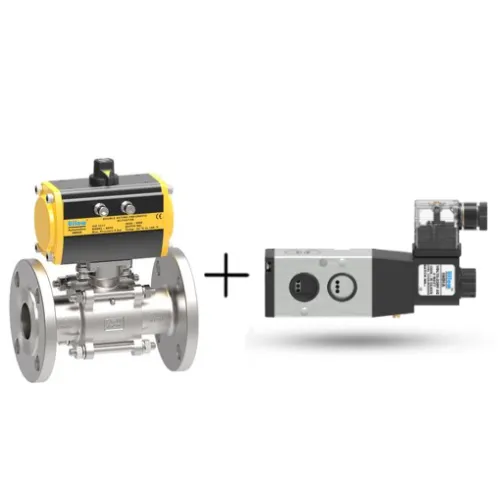

• 1x Uflow 3″ SS304 Pneumatic Ball Valve (Flanged End)
• 1x Pneumatic Rotary Actuator (Size: 80)
• 1x Namur Solenoid Valve (24V AC)
• 1x Compact Limit Switch (2NO-NC)
• Installation manual and user guide

Applications:

• Automated industrial fluid control systems
• Chemical and petrochemical processing industries
• Water and wastewater management facilities
• HVAC systems for regulated flow control
• Food and pharmaceutical production environments
