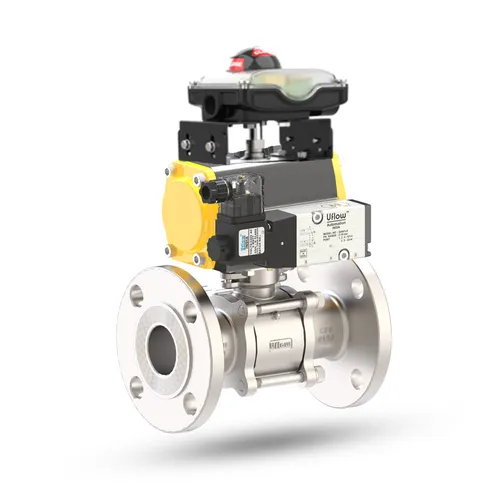

The Uflow 3 Inch (80mm) SS304 Pneumatic Ball Valve with Flanged End, Solenoid Valve (230V AC), and Limit Switch (2NO-NC) is a versatile and robust solution for industrial automation and fluid control. Constructed with high-quality SS304 (CF8) for the body, stem, and ball, and equipped with a PTFE seat, this valve ensures exceptional durability, corrosion resistance, and leak-proof performance. The valve features a 3-piece twin-seal design and full-port configuration, delivering optimal flow efficiency. Enhanced with a pneumatic rotary actuator, Namur Solenoid Valve, and Limit Switch, this system provides precise control, reliable feedback, and seamless operation.

Key Features:

• Durable Construction:
  • SS304 (CF8) body, stem, and ball for superior corrosion resistance and structural integrity.
  • PTFE seat ensures reliable sealing and extended service life.
  • 3-piece twin-seal ball valve design for robust and long-lasting performance.
• Pneumatic Rotary Actuator:
  • Aluminum extruded, hard-anodized body for corrosion resistance.
  • Compact and maintenance-free rack and pinion design.
  • Low air consumption and high torque output for efficient operation.
  • Smooth operation with finer teeth module for jerk-free actuation.
• Automation Components:
  • Limit Switch: Lightweight, weatherproof design with clear open/close indication and 2NO-NC contact configuration for accurate monitoring.
  • Namur Solenoid Valve: Operates on 230V AC, featuring a compact cartridge design, fast response time (up to 1500 cycles/min), and manual override for flexibility.
• Performance Excellence:
  • Full-port design minimizes pressure drop and maximizes flow efficiency.
  • Precision-machined and mirror-finished ball ensures bubble-tight shutoff with reduced operating torque.
• Standards Compliance:
  • Meets ASME B16.10, B16.25, B16.34, B16.5, API 598, BS EN ISO 17292, and ISO 5211 standards for global usability and reliability.

Specifications:

• Valve Size: 3″ BSP
• Actuator Size: 80
• End Connection: Flanged End
• Pressure Class: #150
• Body Material: SS304 (CF8)
• Seat Material: PTFE
• Bore: Full Bore
• Limit Switch Contact: 2NO-NC
• Solenoid Valve Voltage: 230V AC
• Cycle Time: Up to 1500 cycles/min
• Temperature Range: -20°C to 80°C

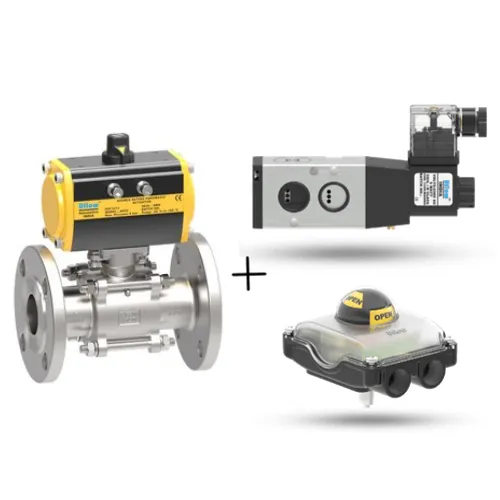

Box Including:

• 1x Uflow 3″ SS304 Pneumatic Ball Valve (Flanged End)
• 1x Pneumatic Rotary Actuator (Size: 80)
• 1x Namur Solenoid Valve (230V AC)
• 1x Compact Limit Switch (2NO-NC)
• Installation manual and user guide

Applications:

• Industrial fluid and gas flow control systems
• Chemical and petrochemical industries
• Water and wastewater treatment plants
• HVAC systems for automated flow regulation
• Food and pharmaceutical production facilities
