Name: Uflow 2.5 Inch / 65mm SS304 Pneumatic Ball Valve Flanged with Solenoid Valve 24v DC & Limit Switch 2NO-NC
SKU: 1660002

Product Details ＋

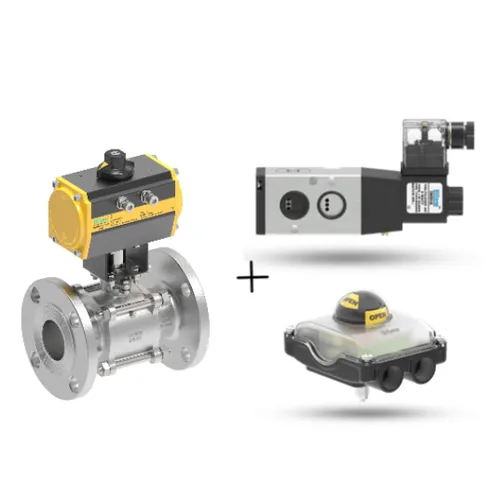

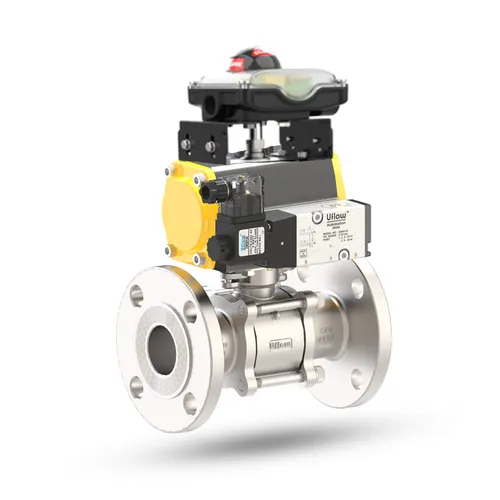

The Uflow 2.5 Inch (65mm) SS304 Pneumatic Ball Valve offers superior performance and durability, designed with a 3-piece twin-seal construction and flanged ends for robust industrial applications. Equipped with a 24V DC solenoid valve and a compact limit switch (1NO-1NC), it ensures precise control, bubble-tight shutoff, and reliable operation. With full port design and corrosion-resistant SS304 materials, this valve is ideal for fluid handling systems requiring high performance and minimal maintenance.

Key Features:

Valve Body & Design: 2.5″ flanged end ball valve made from high-grade SS304 (CF8) with PTFE seats for superior sealing.
Full Bore: Ensures maximum flow efficiency with minimal pressure drop.
Standards Compliance: Conforms to ASME and API standards, ensuring reliability and global usability.
Rotary Actuator: Aluminum body with wear-proof rack and pinion design for smooth and efficient operation.
Limit Switch: Weatherproof, compact design with open/close indication for precise monitoring.
Solenoid Valve: 24V DC compact cartridge design with manual override, ensuring fast response and high durability.
Temperature Range: Operates efficiently from -20°C to 80°C.

Specifications:

Valve Size: 2.5″ BSP
End Connection: Flanged End (#150 Pressure Class)
Materials:
- Body, Stem, Ball: SS304 (CF8)
- Seat: PTFE
Design Standards: ASME B16.10, B16.25, B16.34, B16.5, API 598, BS EN ISO 17292, ISO 5211
Rotary Actuator Performance:
- Compact aluminum body with low air consumption
- Smooth operation with finer teeth module
Solenoid Valve:
- Voltage: 24V DC
- Cycle Time: Max 1500 cycles/min
Limit Switch:
- Contact: 1NO-1NC
- Indicator: Transparent dome for open/close status
