Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Form | SPDT |
| Current Rating | 10 A |
| Monitoring Function | Phase Monitor |
| Mounting Type | Socket |
| Number of Pins | 8 Pin |
| Output Type | SPDT |

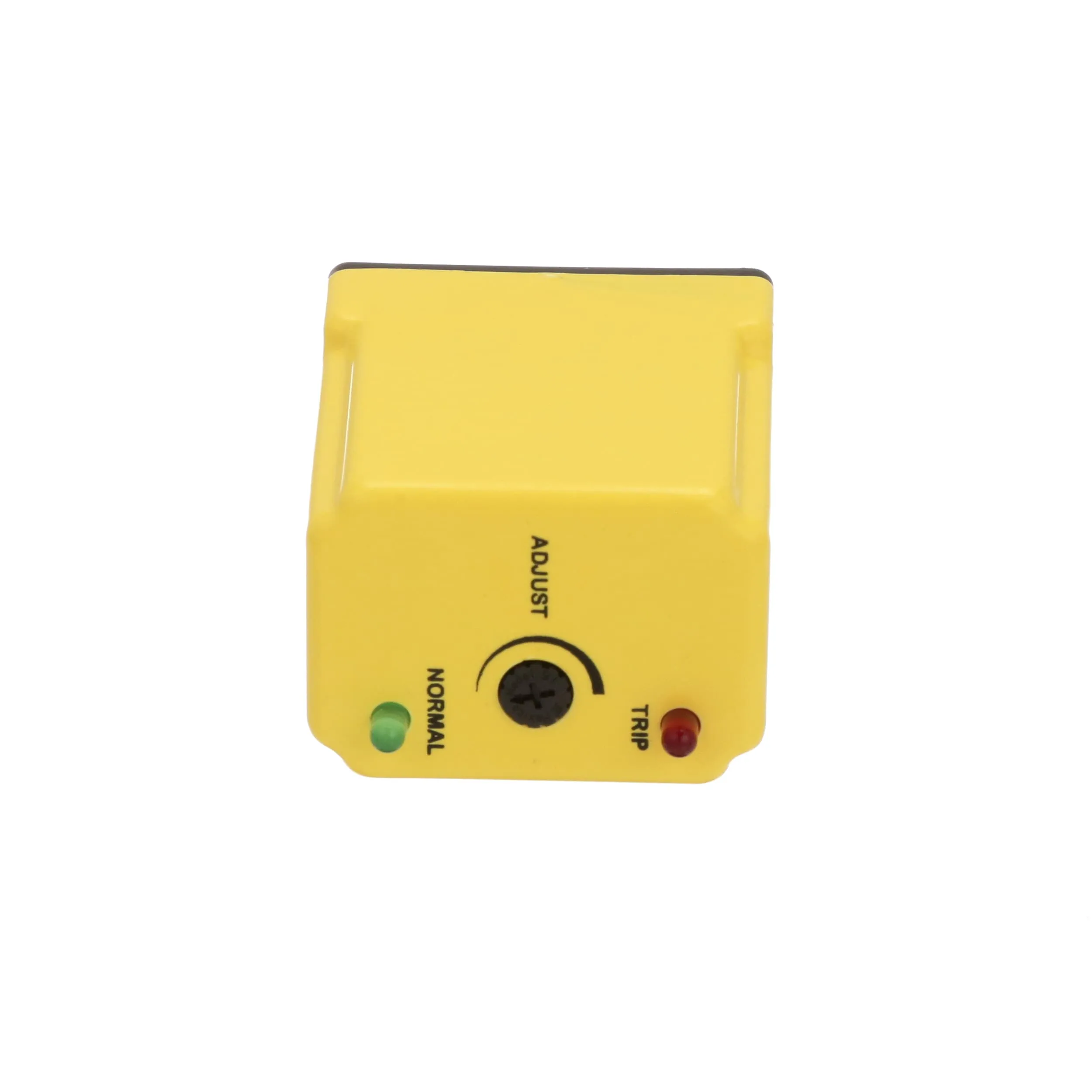

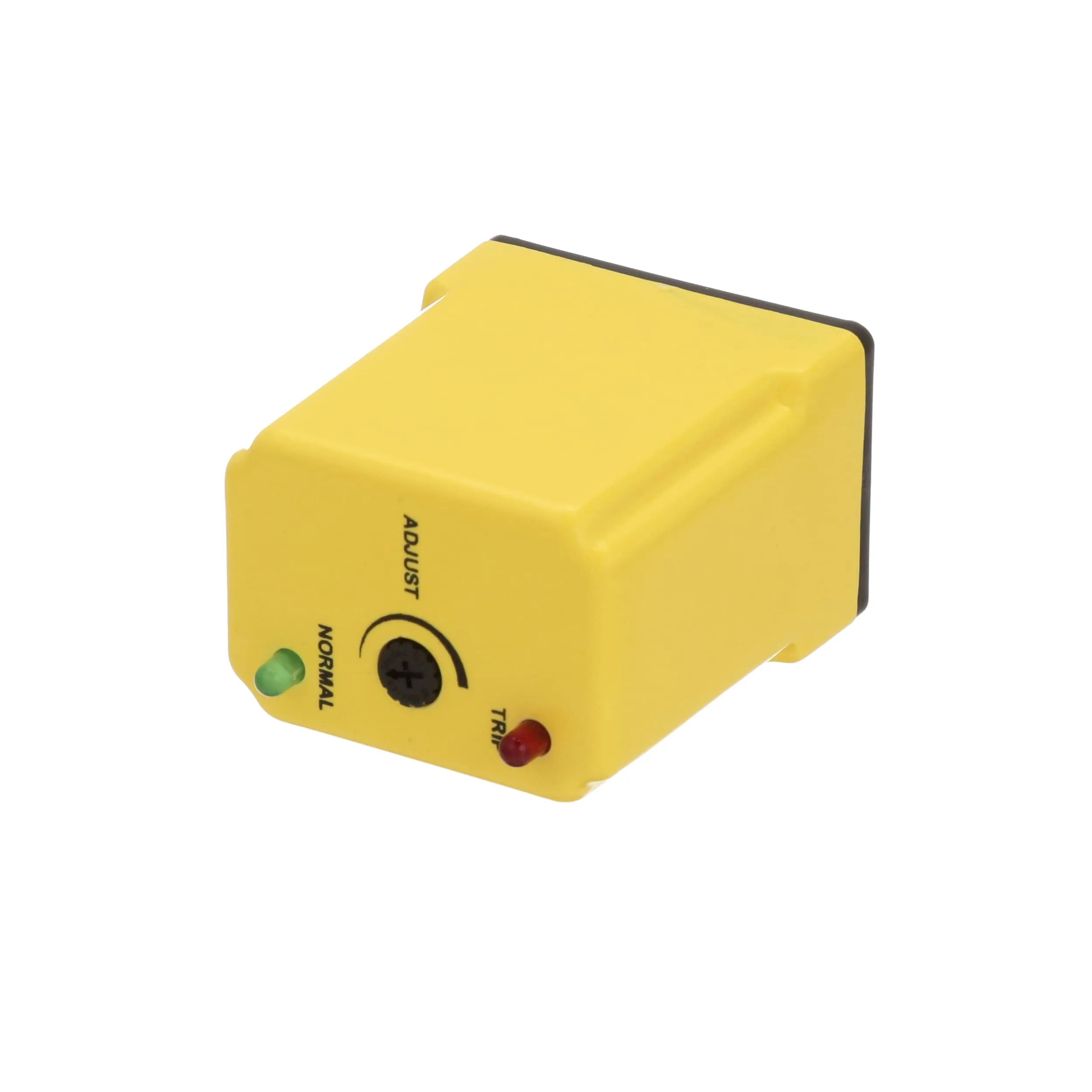

| Product Description | Continuously monitors 3-phase power lines for abnormal conditions. When properly adjusted, monitor will detect phase loss on a loaded motor even when regenerated voltage is present. This device consists of a solid-state voltage and phase-angle sensing circuit, driving an electromechanical relay. When correct voltage and phase rotation are applied, the internal relay will energize. A fault condition will de-energize the relay. When the fault is corrected, the monitor will automatically reset (a manual reset version is also available). Does not require a neutral connection and can be used with Wye or Delta systems. Voltage ranges are sufficiently wide to allow for proper adjustment to existing conditions. Both "TRIP" and "NORM" condition indicators are provided to aid an adjustment and system trouble-shooting. |

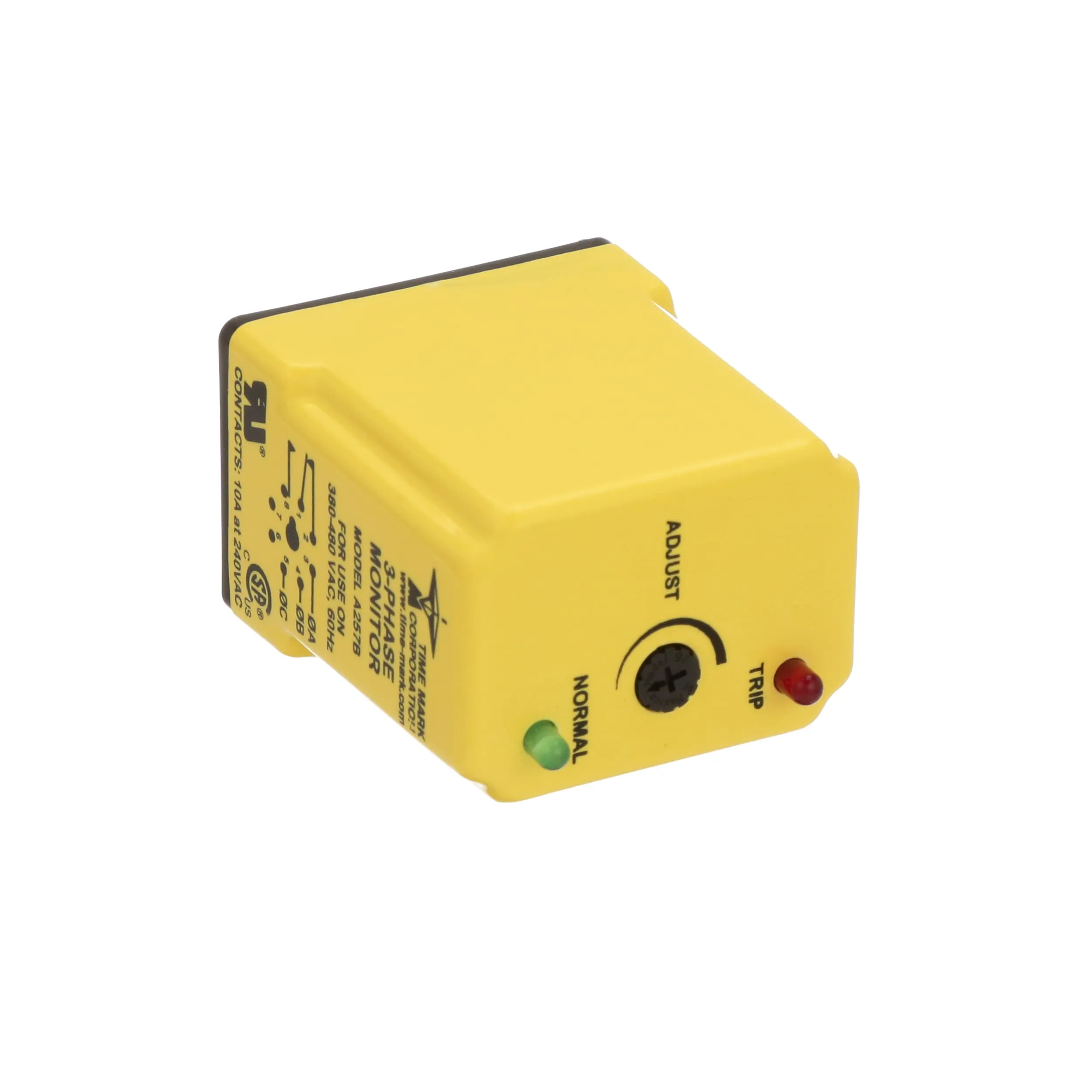

| Product Header | Solid State 3-Phase Monitor Relay |
| Relay Type | Electromechanical |
| Series | |
| Special Features | Automatic or Manual Reset |
| Standards | CSA, UL |
| Supply Voltage | 480 VAC |

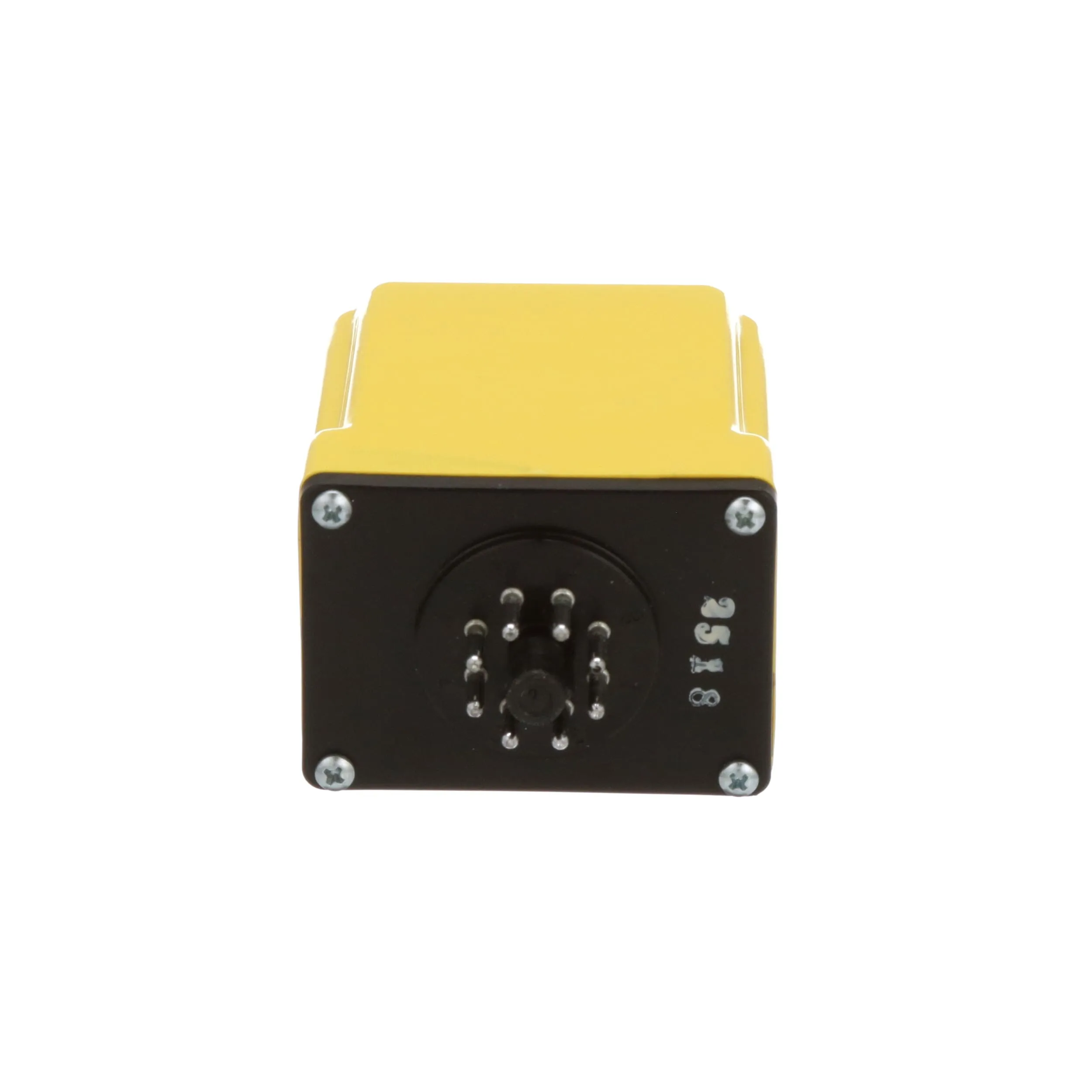

| Termination | 8-Pin Octal |
| UPC Code | 662917001695 |
| Voltage Rating | 240 VAC |
| Voltage, Control | 480 VAC |
