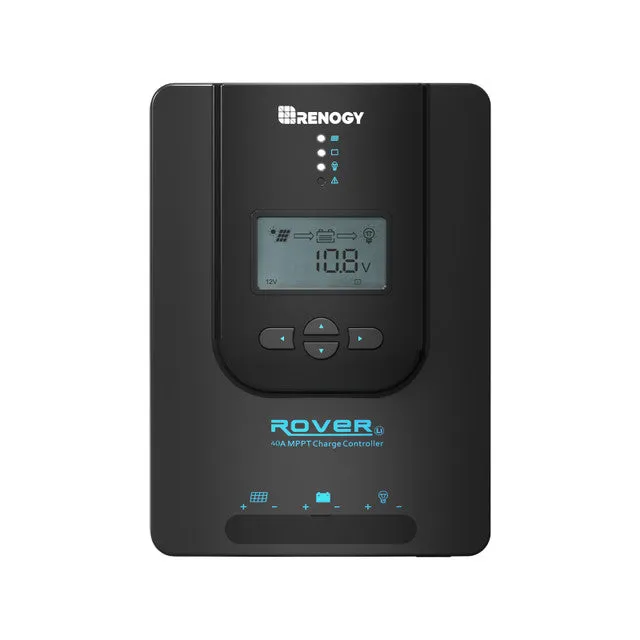

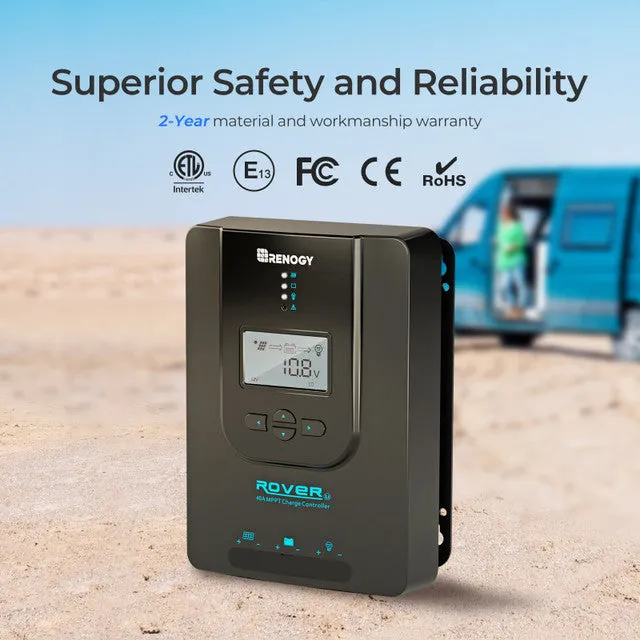

Renogy Rover Li 40 Amp MPPT Solar Charge Controller

The Renogy Rover Li 40 Amp MPPT Solar Charge Controller is the ultimate tool for maximizing the efficiency of your solar panel system. This charge controller utilizes Maximum Power Point Tracking (MPPT) technology to ensure that every drop of sunlight is converted into usable energy for your batteries.

With a 40 Amp capacity, this charge controller is suitable for a wide range of solar panel setups, from small residential systems to larger commercial projects. Its advanced technology allows for precise tracking of the solar panel's output, ensuring that your batteries are always charged to their optimum level. The Renogy Rover Li 40 Amp MPPT Solar Charge Controller is also equipped with a range of safety features, including overcharge, over-discharge, and overheat protection. This ensures that your batteries are always protected against damage, extending their lifespan and maximizing their performance.

Overall, the Renogy Rover Li 40 Amp MPPT Solar Charge Controller is a reliable and efficient solution for managing your solar panel system. Invest in this top-of-the-line charge controller and enjoy the benefits of a truly optimized energy system.

Highlights:

•    Robust charging
•    Efficient MPPT technology
•    LiFePO4 Battery compatibility
•    Custom charging parameters

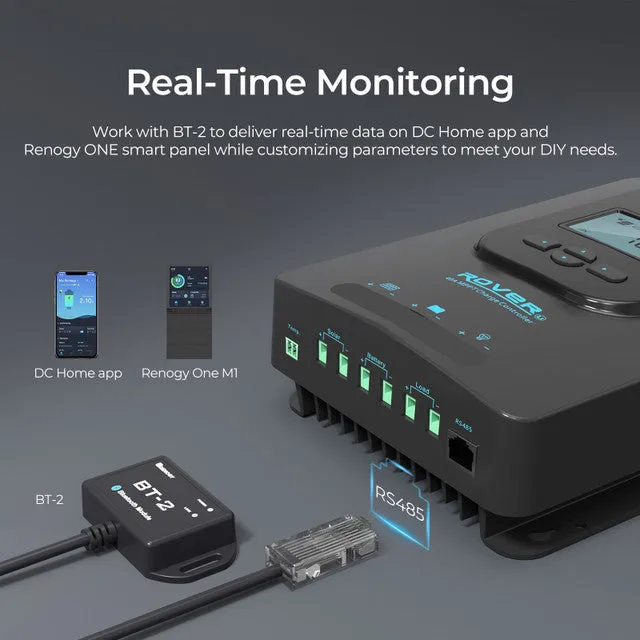

•    Real-time monitoring

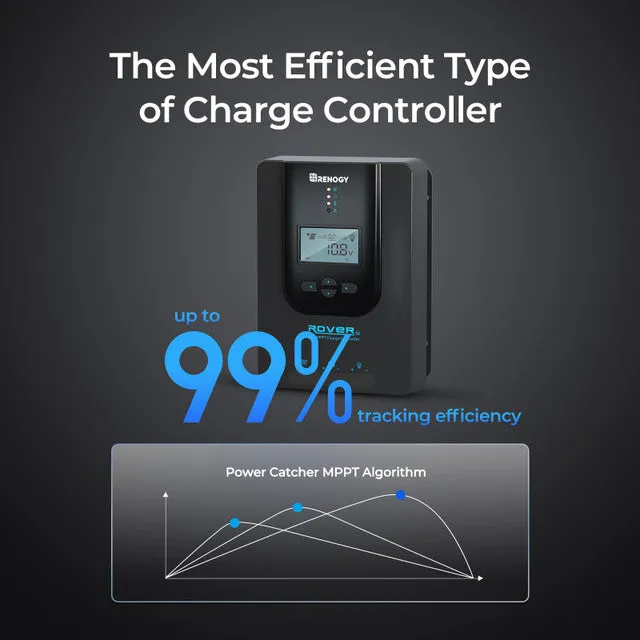

•    98% Conversion efficiency; 99% tracking efficiency
•    Certified protections

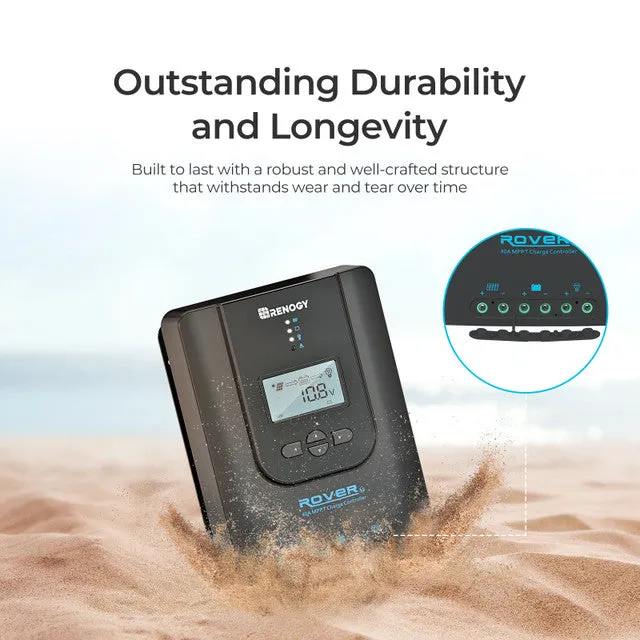

•    Made of robust die-cast aluminum

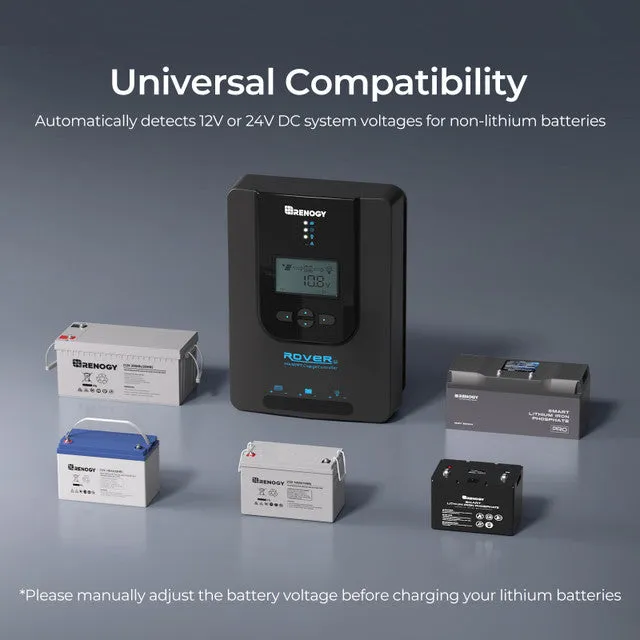

•    Automatically detects 12V/24V system (non-lithium batteries)
•    40A MPPT Charger
•    Simple and intuitive programming
•    Powerful heat dissipation

SPECIFICATIONS:

Electrical Parameters
Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium Batteries)
Rated Charge Current: 40A
Max. PV Input Voltage: 15VDC~100VDC
Max. PV Input Power: 12V/520W, 24V/1040W
Power Consumption: ＜100mA/12V; ＜58mA/24V
Battery Input Voltage Range: 10VDC~32VDC
Ground Type: Negative
Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.

Environmental Data
Protection Level: IP32

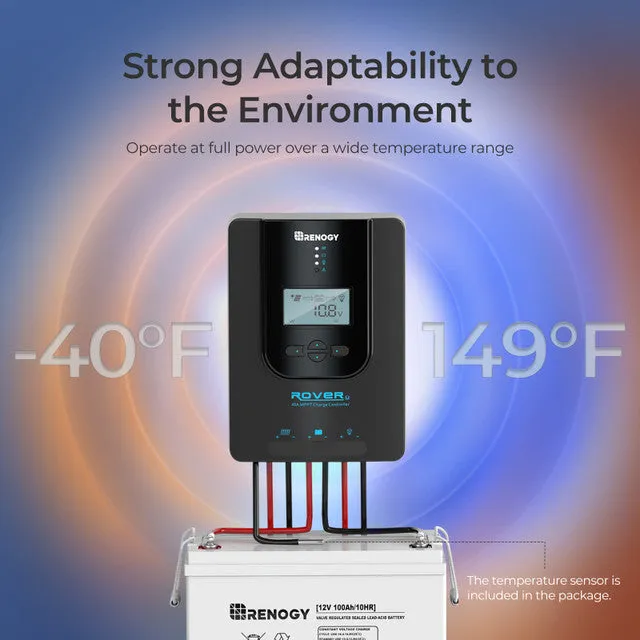

Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity: ≤ 90%, No Condensation
Temperature Compensation: -3mV/°C/2V

Mechanical Specifications
Dimensions: 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in
Weight: 4.4 lbs / 2.0 kg
Max. Terminals Size: 8 AWG 10mm2

Accessories:
Temperature Sensor: 9.8ft cable length

Certifications
CE: Yes
FCC Class B Part 15 Compliant: Yes

Warranty: Material and Workmanship Warranty: 3 Year

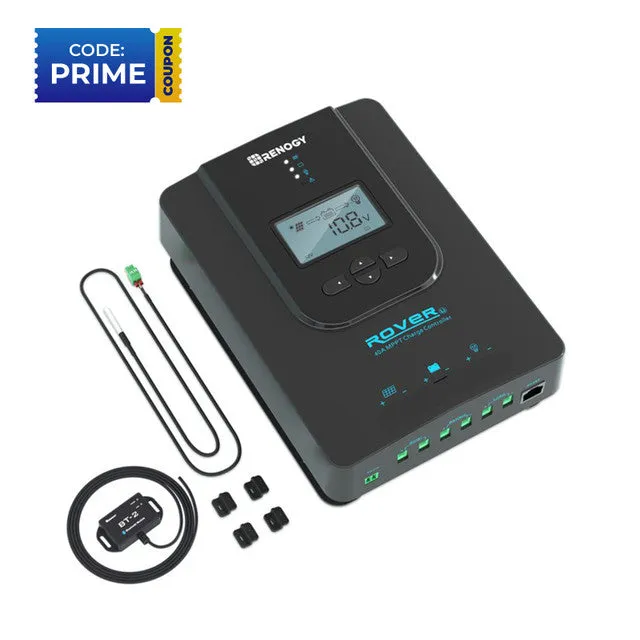

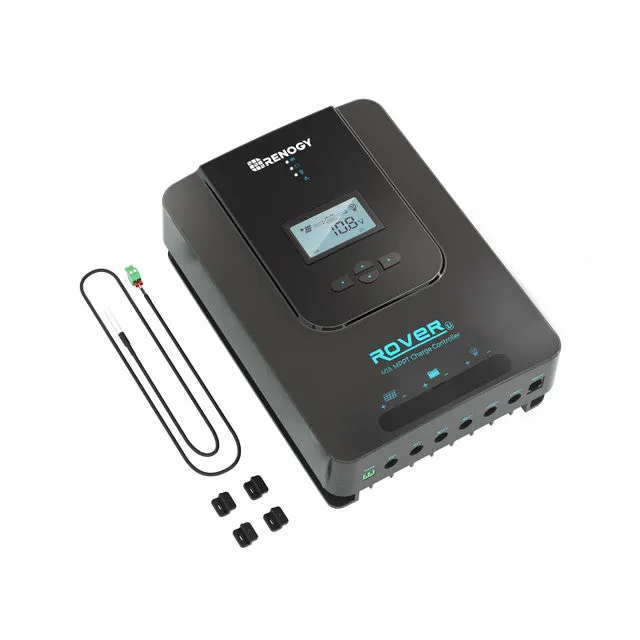

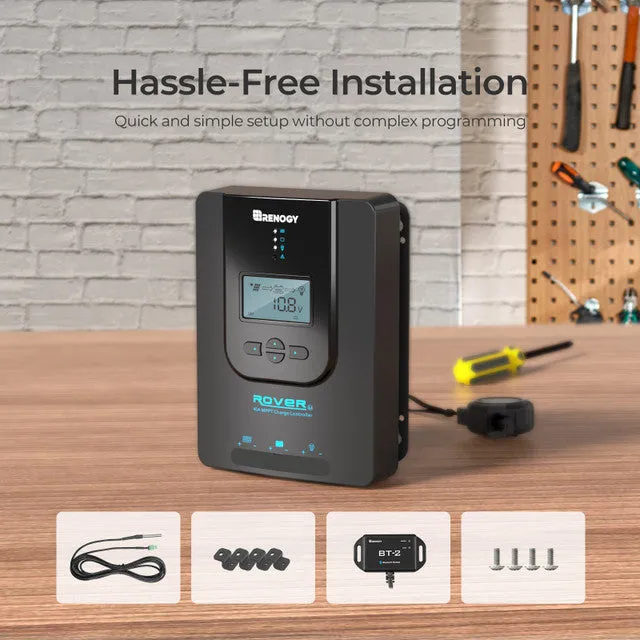

WHAT’S IN THE BOX:

1 x Renogy Rover 40A MPPT Solar Charge Controller

1 x Remote Temperature Sensor

4 x Mounting Brackets

1 x User Manual
