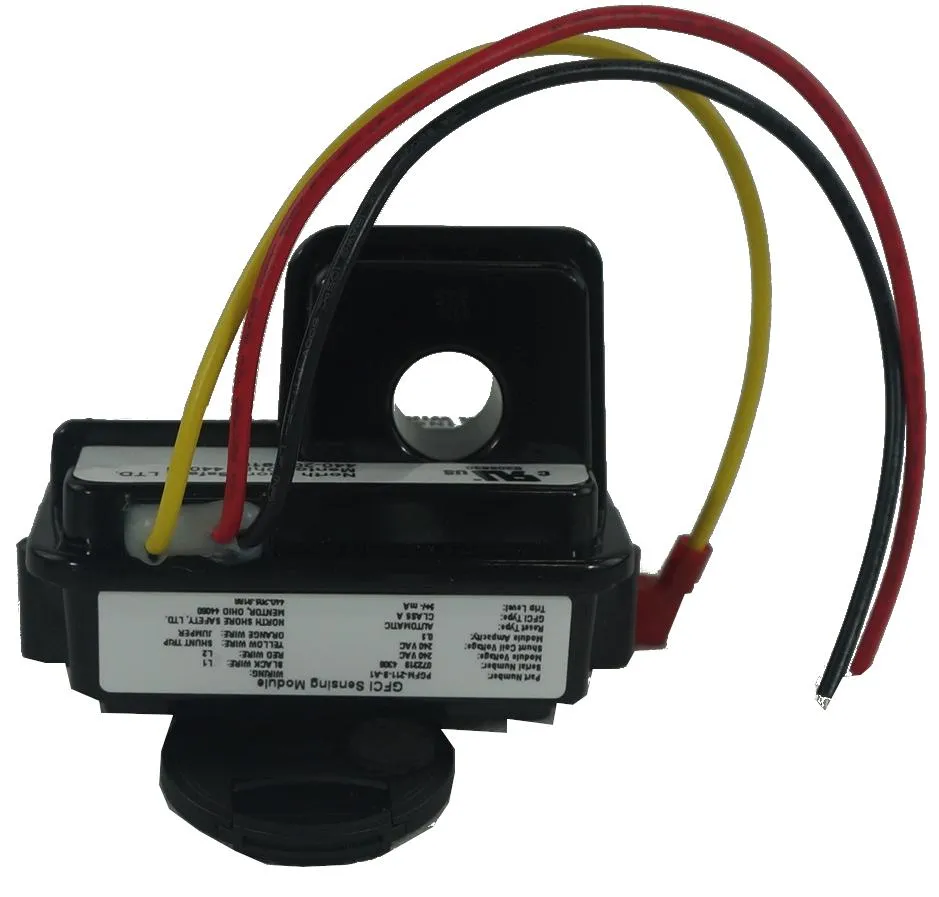

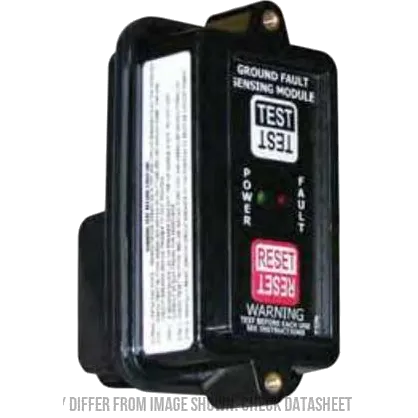

PGFM-211-B-A1, GFCI Lineguard Ground Fault Protection Relay for Single or Split Phase Systems, 5mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker

Features :

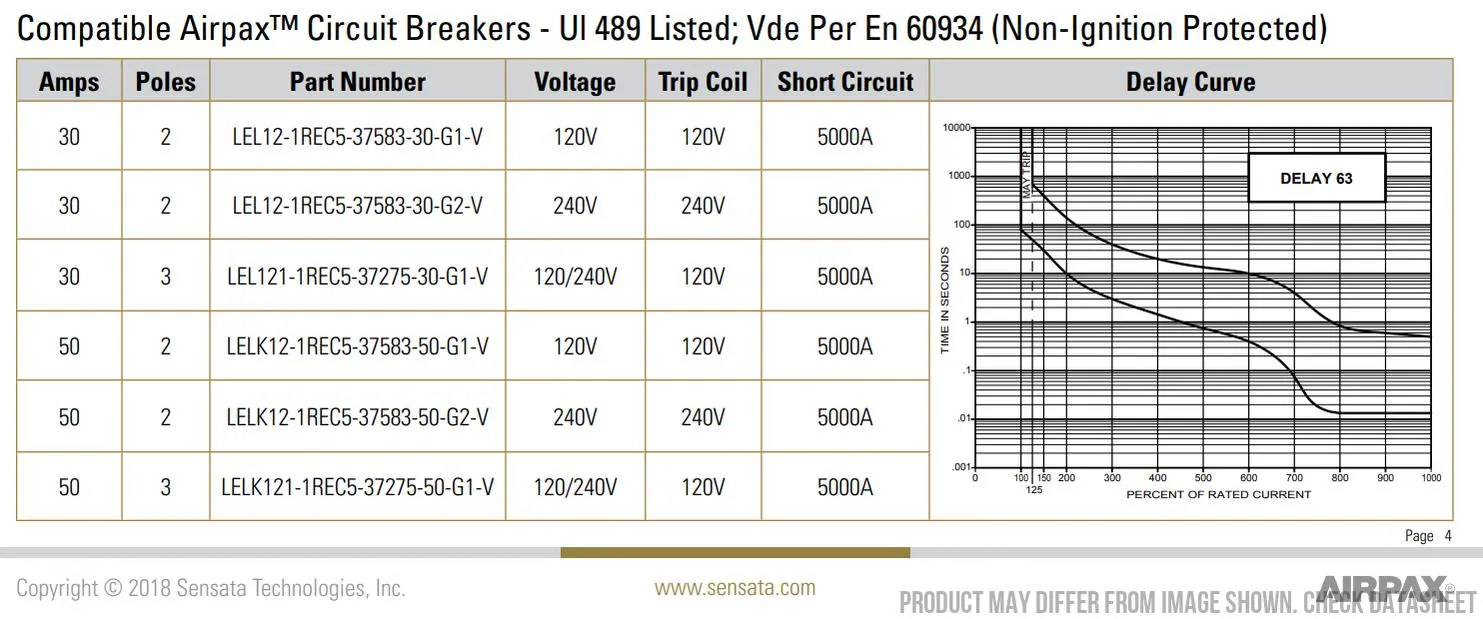

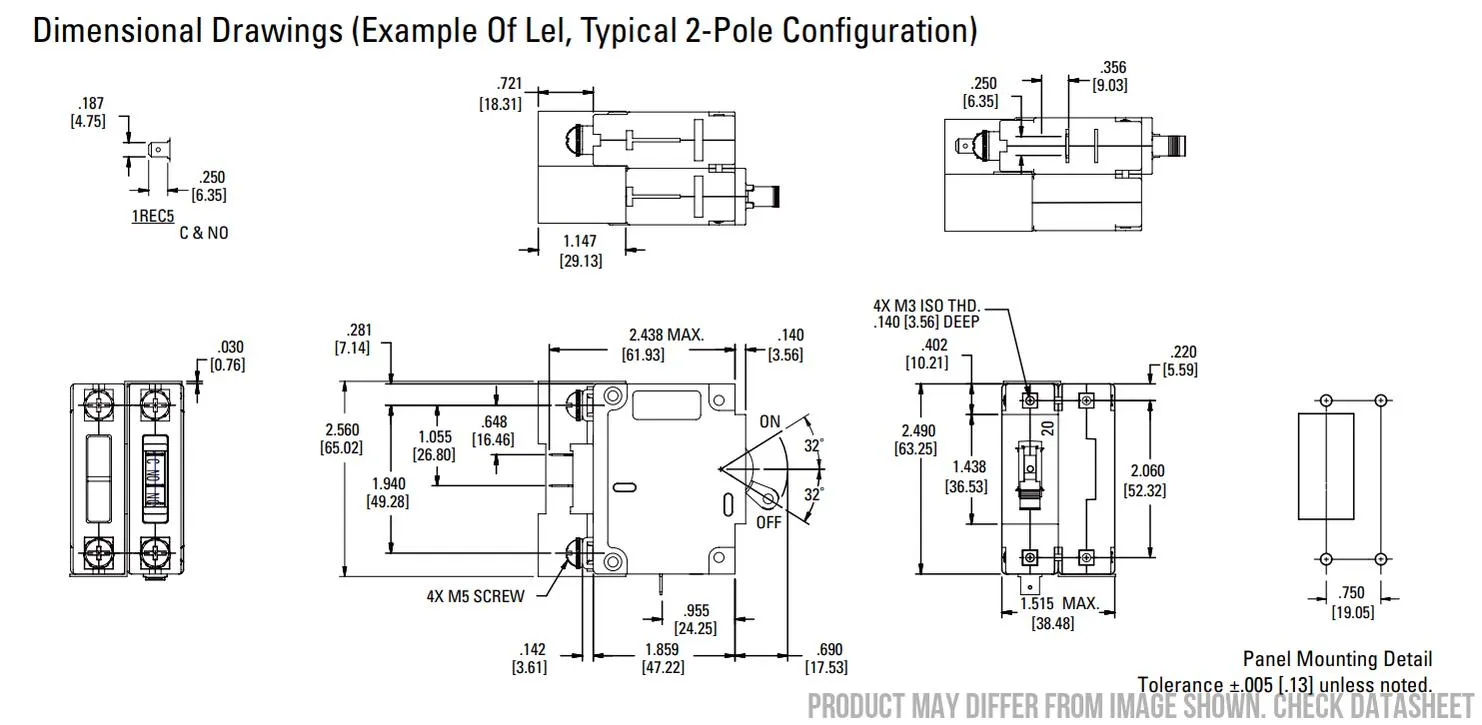

  • Suitable for Air Pax Breaker LEL Series

Applications :

  • On Board Vessel Earth Leakage Detection (Marine)
Specification
Sensata - Klixon Part Number PGFM-211-B-A1
Supply Voltage 240VAC

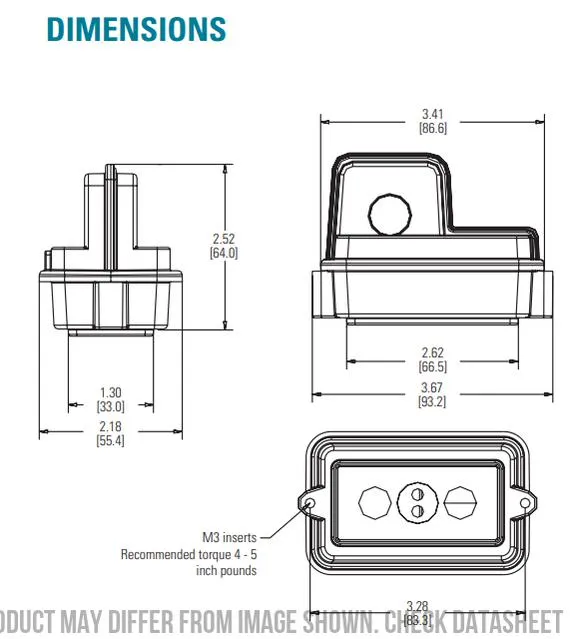

Dimensions 55.4mm x 93.2mm x 83.3mm
Application
 Earth Leakage Detection 5mA - 50 Amp
Trip Level /-5mA Nominal (Auto Reset)
Relay Auto Reset, Requires Air Pax LEL Series Breaker
Protection IP20
Approvals E-11 GFP - UL 943 Category FTTJ2 when used in tandem with Airpax LEL series
Trip Time of Assembly 100mS or Less (60mS nominal)
Sensing Coil Voltage Limit 600VAC max
Operating Temnperature -35 to 66 Deg C
Weight 200g
Mounting Style Din Rail

Datasheet
PGFM-211-B-A1, GFCI Lineguard Ground Fault Protection Relay for Single or Split Phase Systems, 5mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker
