Product Details
＋

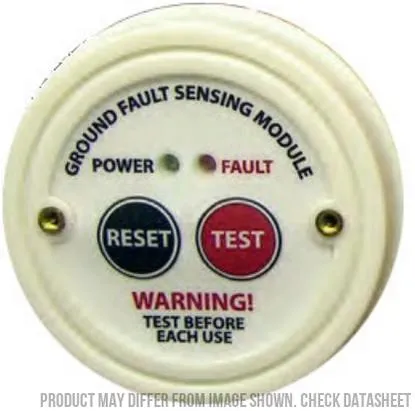

PGFM-211-B-A1-188, ELCI Marine Ground Fault Protection Relay for Single or Split Phase Systems, 27mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker
Features :

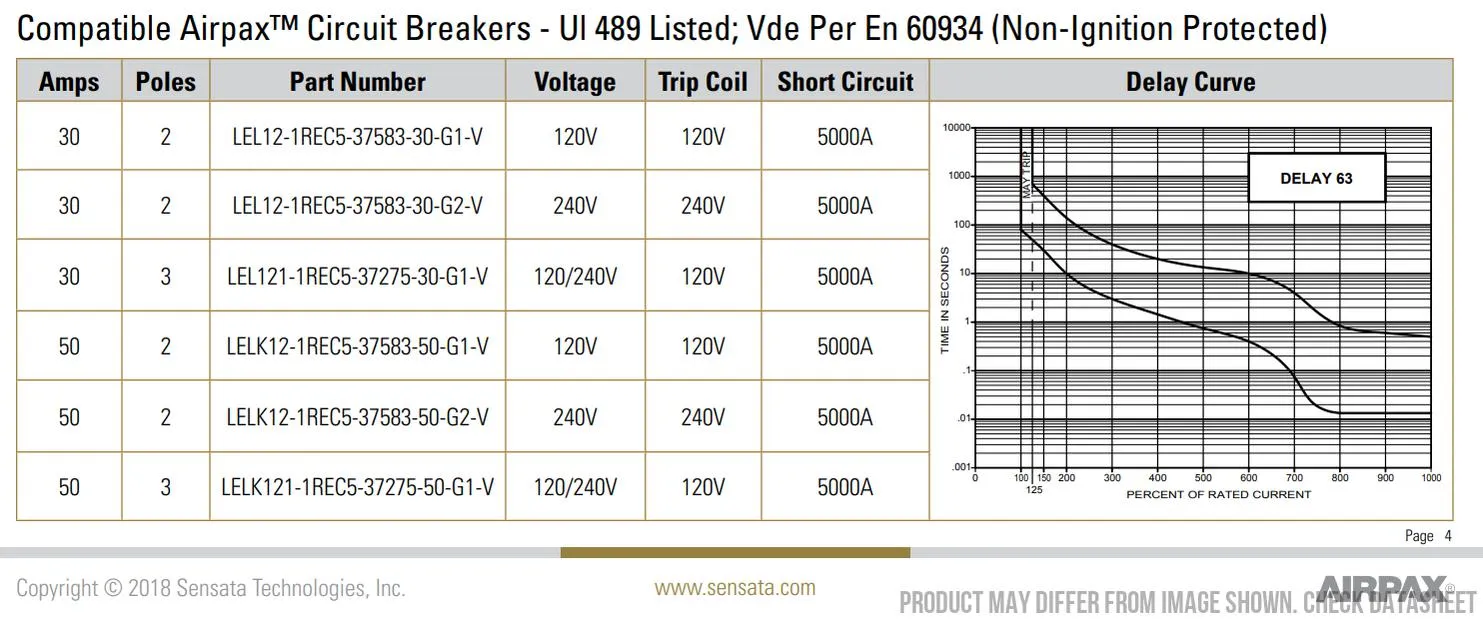

- Suitable for Air Pax Breaker LEL Series
Applications :
- On Board Vessel Earth Leakage Detection (Marine)
Specification
| Sensata - Klixon Part Number | PGFM-211-B-A1-188 |
| Supply Voltage | 240VAC |

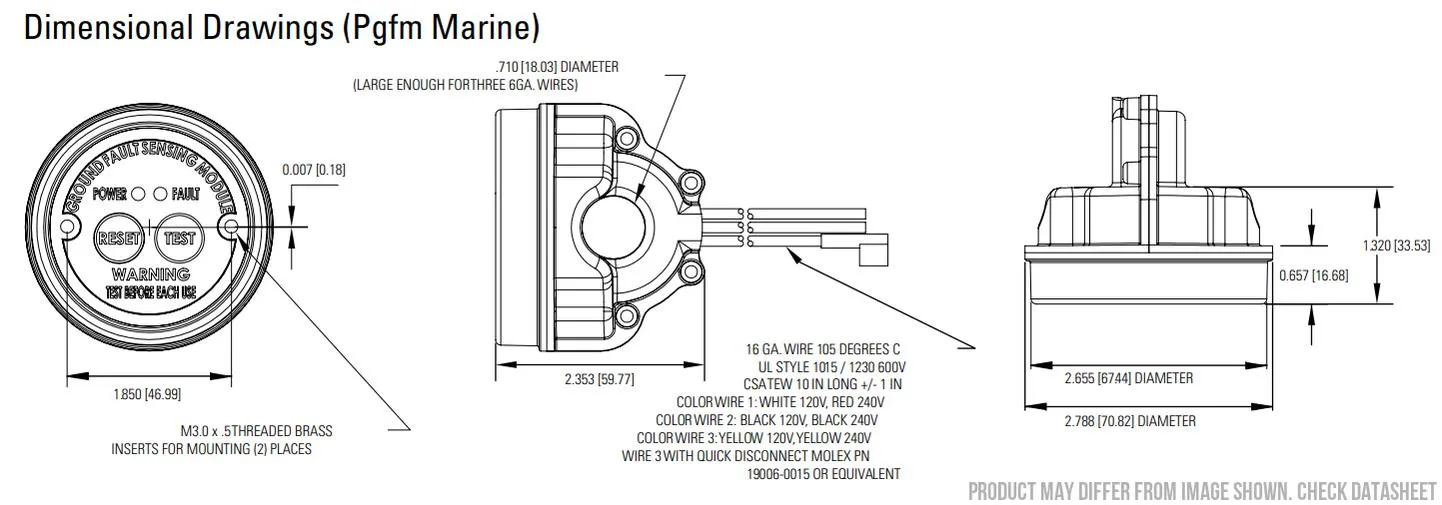

| Dimensions | ⌀70.82mm x 59.77mm |
|
Application |
Earth Leakage Detection 27mA - 50 Amp |
| Trip Level | /-27mA Nominal (Auto Reset) |
| Relay |

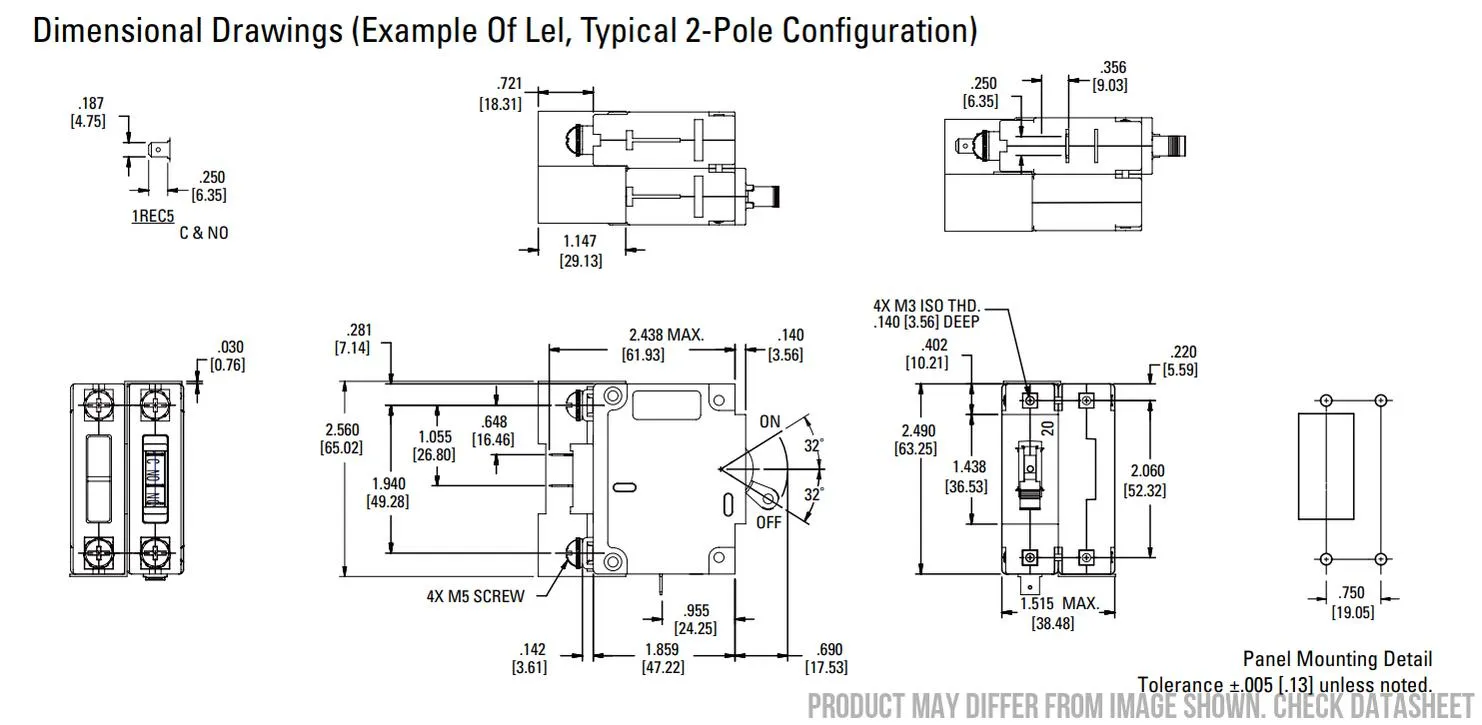

Auto Reset, Requires Air Pax LEL Series Breaker |
| Protection | IP20 |
| Approvals | E-11 GFP - UL 943 Category FTTJ2 when used in tandem with Airpax LEL series |
| Trip Time of Assembly | 100mS or Less (60mS nominal) |
| Sensing Coil Voltage Limit | 600VAC max |
| Operating Temnperature | -35 to 66 Deg C |
| Weight | 200g |
| Mounting Style | Din Rail |
