Features:

• 1RU 19” rack mounting
• Wide ranging voltage supply
• 100-120 Vac and 220-240 Vac
• Power consumption approx 60W
• Baseband Output: Level 0 dBm BNC 50Ω
• DVB-T Signal Bandwidth: 7.612 MHz for bandwidth set to 8 MHz; 6.660 MHz for bandwidth set to 7 MHz
• Amplitude Flatness: Typically ±0.2 dB, maximum ±0.4 dB within DVB-T Signal Bandwidth
• Pre-Correction Bandwidth: 18 MHz for 7/8 MHz switchable system bandwidth version

M2/MODT/MT5600

• COFDM modulation to ETS 300744 standard
• MFN Operation
• Input bit-rate adaptation
• Near-seamless switching of Transport Stream inputs
• Web browser control and monitoring
• SNMP control and monitoring

Business Benefits

• Proven worldwide operation in real DTT network deployments
• Space saving compact 1RU unit
• Simple transmitter integration
• Global network support from 36 to 907MHz
• Support for multi-frequency and single-frequency networks (SFN)
• Global local customer support operations

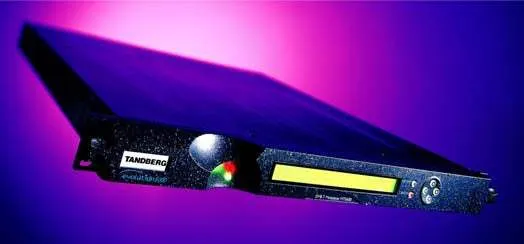

The MT5600 is an ultra compact, third generation terrestrial modulator from TANDBERG Television. Its advanced features ensure ease-of-use, high levels of integration and maximum flexibility.

The MT5600 is based on core OFDM technology established by TANDBERG Television in live networks. It provides a flexible, effective platform for enhanced terrestrial transmitter functionality.

With very high quality modulation and RF performance combined with flexible integration options this modulator has already proved its large-scale deployment value in many networks.

As a compact and simple unit it is also an ideal platform for trial and test systems.
