| Product Attribute | Attribute Value |
|---|---|
| Configuration | Sealed |
| Family Name | HLG Family |
| Input Voltage | 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC ; 277 VAC |
| Mounting Type | Panel Mount |
| Number of Outputs | 2 Output |
| Operation | PFC |
| Output Current | 12.5A@48V, 0.5A@5V |
| Output Power | 600 W |
| Output Voltage | 48 VDC, 5 VDC |
| Primary Type | AC-DC |
| Series | |
| Type | LED Driver |
| Voltage, Input Range | 115-305 VAC |
Overview

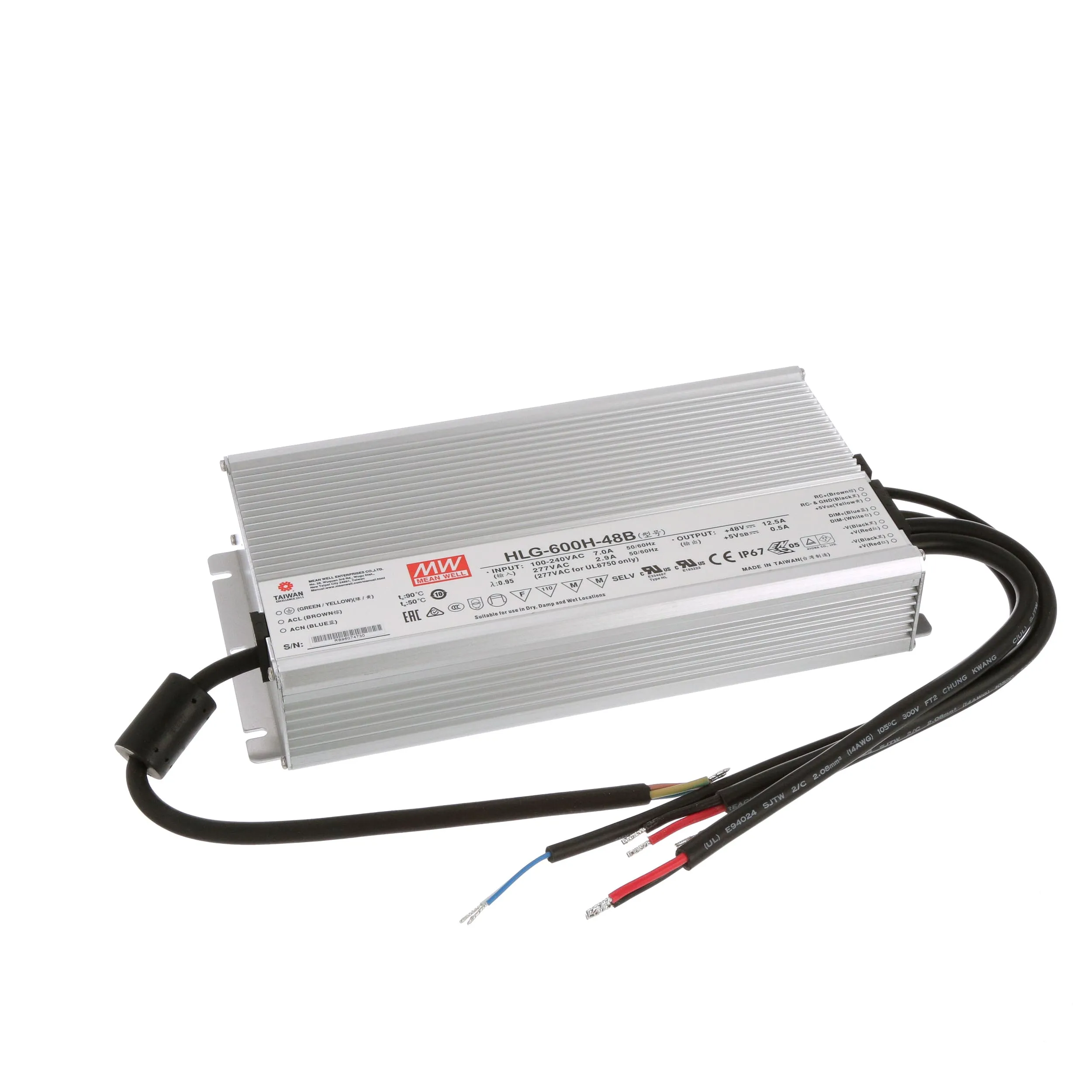

MEAN WELL HLG-600H Series - 600W Constant Voltage Constant Current LED Driver:
HLG-600H Series is a 600W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-600H operates from 90 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series is able to operate for - 40 C° ~ 90°C° case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HLG-600His equipped with various function options, such as dimming methodologies to provide the optimal design flexibility for LED lighting system.
Features:
Applications:
