Complete Vehicle Safety Package With 5" Screen & Reverse Camera!

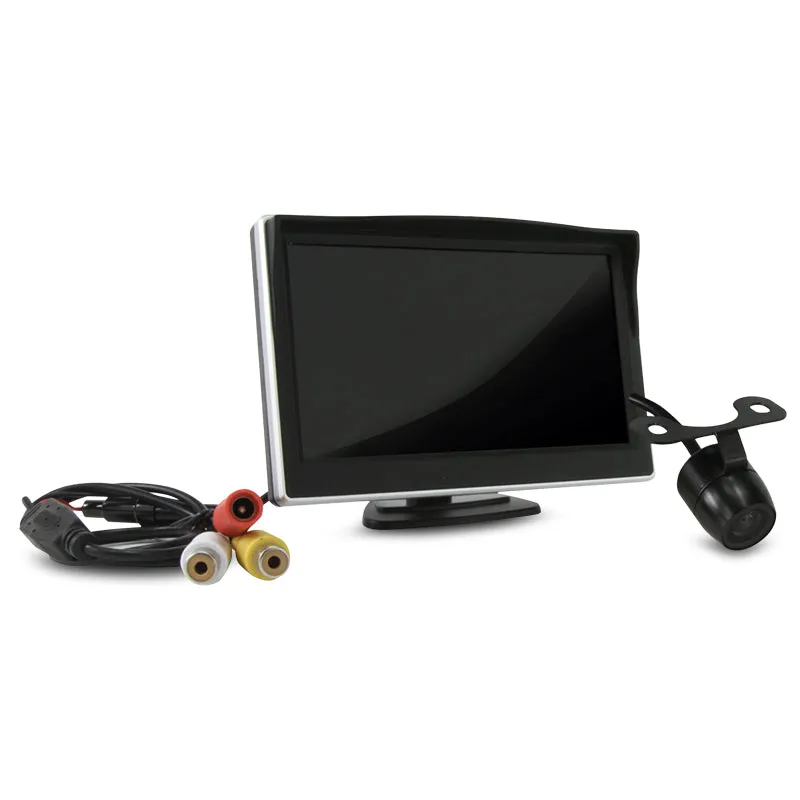

5" Rearview LCD Monitor With Butterfly/Flush Mount Camera (RCB170)
This kit provides a complete safety package incorporating a 5-inch screen and reverse camera in a convenient pack.

5-inch Rearview LCD Monitor - (RVS50)
This 5-inch screen is compatible with all our camera models and has a built-in sun visor.
Fully adjustable ball joint bracket which is dash mountable with 3M adhesive tape.
Has two video inputs and includes a 12V power cable.

RVS50 Screen Features:

High-Definition LCD Display
360 Degree Adjustable Mount
2 x RCA Video Inputs (AV2 (White) has priority over AV1 (Yellow)

RVS50 Screen Specifications:

Screen Size: 5" LCD Display
Video System: PAL / NTSC
Mode: 4:3 or 16:9
Resolution: 800 (H) * 400 (V)
Video Input: 1.0V±0.5Vp-p 75O
Auto Switching: V1 & V2 (Priority)
Operating Temperature: -10°C ~ 50°C
Working Voltage: DC 12V ( /-10%)
Consumption: 130mA±10%

CMOS Reverse Camera Butterfly Mount - (RCB170)
This miniature butterfly/flush mount camera is a truly universal solution for multipurpose vehicle installations.

Model Strengths:

Universal
Zinc Alloy Housing
Miniature
Side Mounting Option
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*

RCB170 Camera Features:

Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.
The camera also includes a butterfly mount and flush mount and has a Waterproof IP68 rating.
Ideal for a wide range of vehicles wanting a safety solution. Rear, front, or side mount applications.

RCB170 Camera Specifications:
