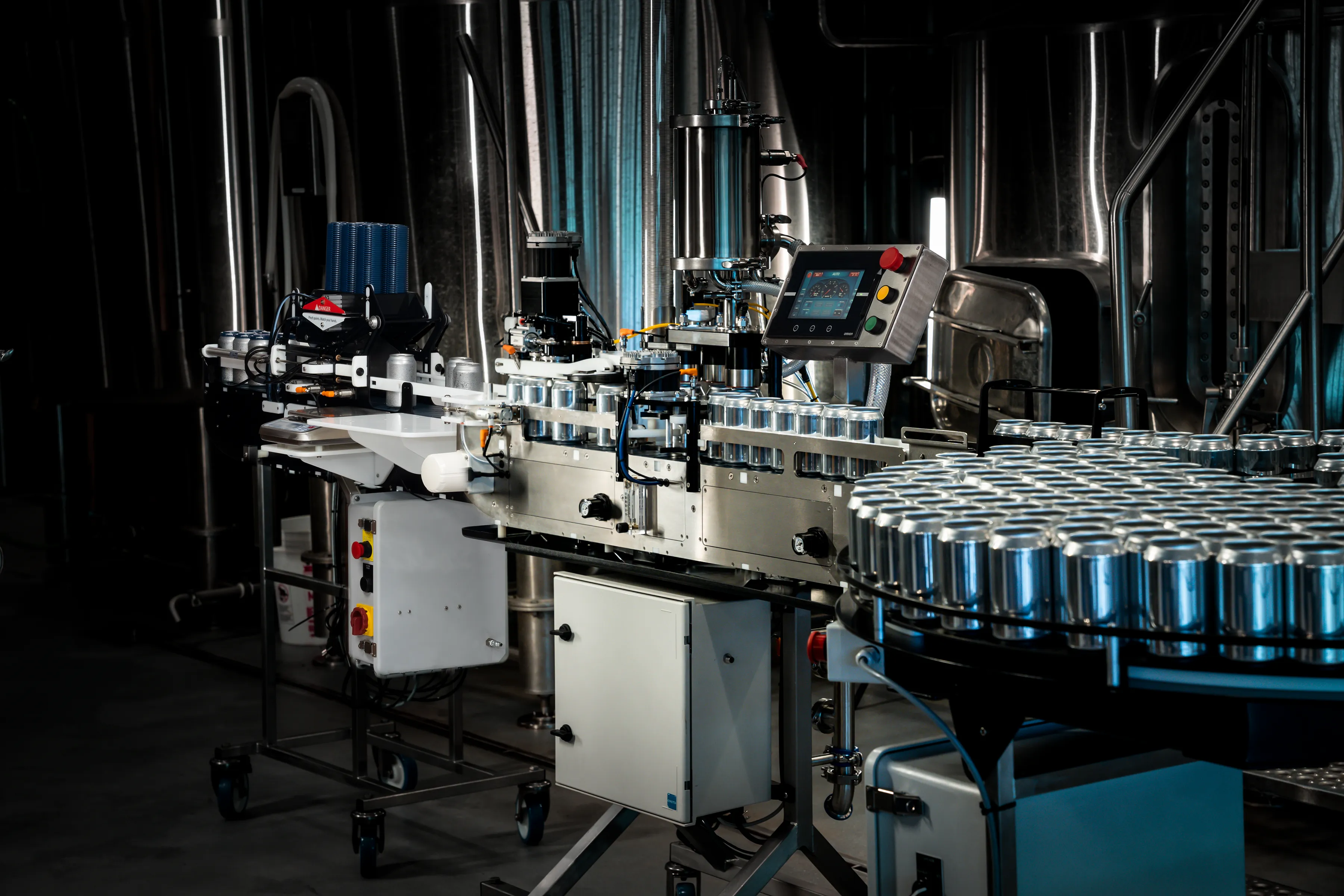

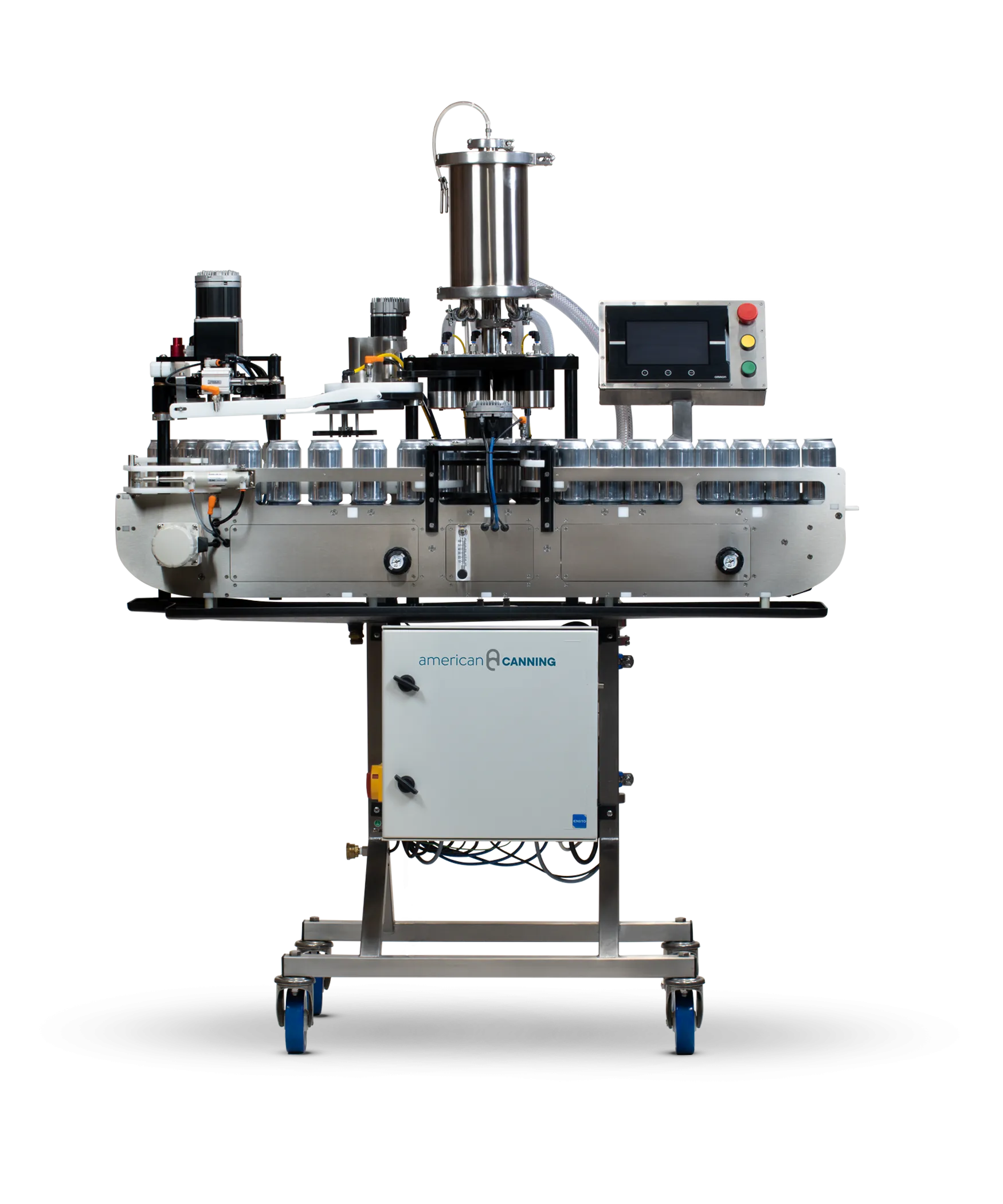

The CP-4 Filler/Seamer is an automated, 4-head counterpressure canning system designed to take empty beverage cans and fill them with carbonated or still product before sealing them with a can end.

Counterpressure filling allows for more complete control of beverage delivery than open atmosphere systems and accommodates a broader range of beverage packaging.

Unique to the ACM filler/seamer, ends are applied via a star wheel mechanism. This results in fewer missed lids, reduced waste and limited downtime. Additionally, the star wheel incorporates underlid CO2 and a bubble breaker to effectively reduce dissolved oxygen pickup.

The seaming unit is powered by a compact servo motor for high power and speed in a small package. The seamer can also be removed entirely so that required maintenance can be conveniently performed on a bench top.

Changing between can heights is easily accomplished in minutes by simply loosening and re-tightening eight bolts.

Features:

• Counter-pressure filling
• Rotary-style lid applicator
• Active seam load monitoring
• Included temperature / pressure monitoring
• Automatic CIP cycle
• Included post-fill rinse/air
• Integrated tank pressure control

Recommended Add-ons:

• Video Jet date code printer
• Spare parts kit
• Easy CIP kit
• Can diameter change kit (if packaging more than one can body-diameter)

• LN2 doser (for still product)

Lead Time:

• American Canning is committed to short lead times for all machines. Based on demand and number of machines per order, lead time may be as quick as 1-2 weeks or up to 6-8 weeks. Please contact [email protected] for specifics.

The Complete Canning Suite

Speed: 20-30 CPM

Can Body Diameters & Fill Volumes:
Standard (211) 8oz, 12oz, 16oz, 19.2oz, 500ml
Sleek (204.5) 8oz, 10oz, 12oz
Slim (202) 187ml, 200ml, 250ml
*Can diameter change parts are available at an additional cost

Operating Footprint: 55" x 20"

Power: 120VAC - 5amps
