Product Details
＋

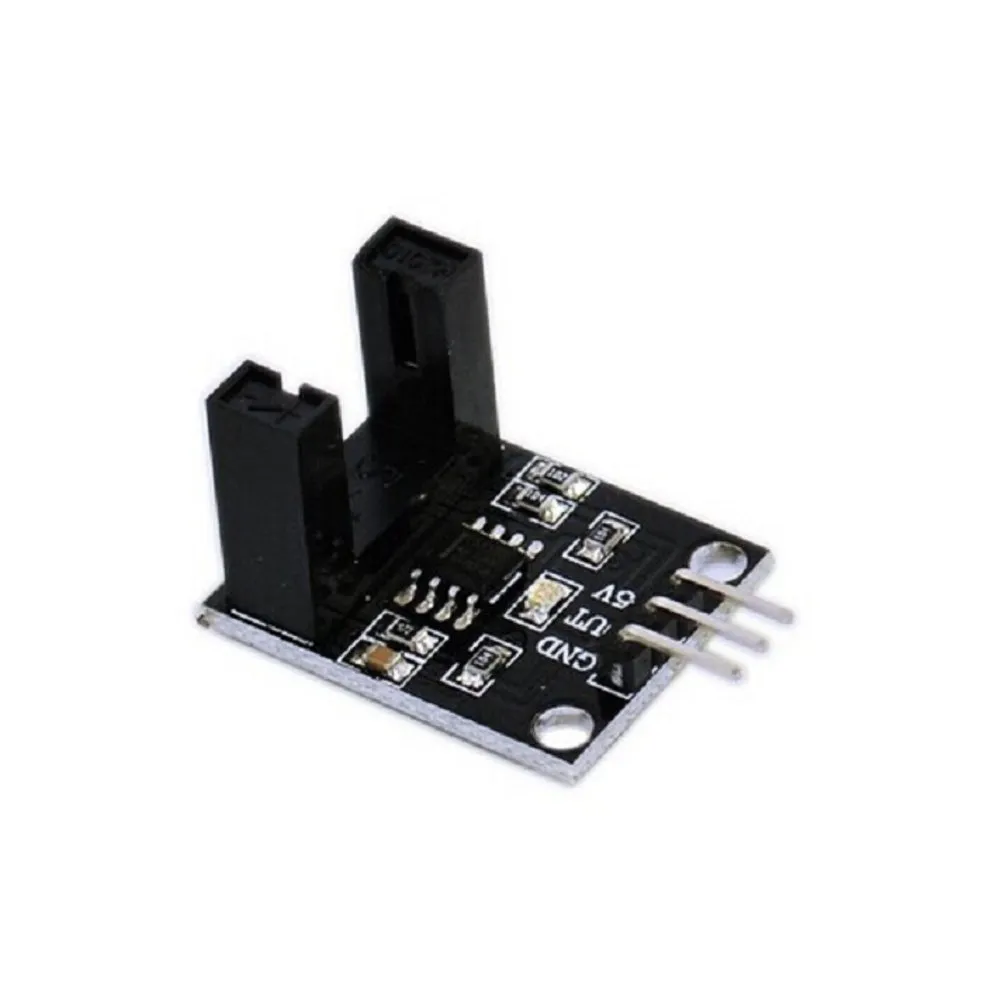

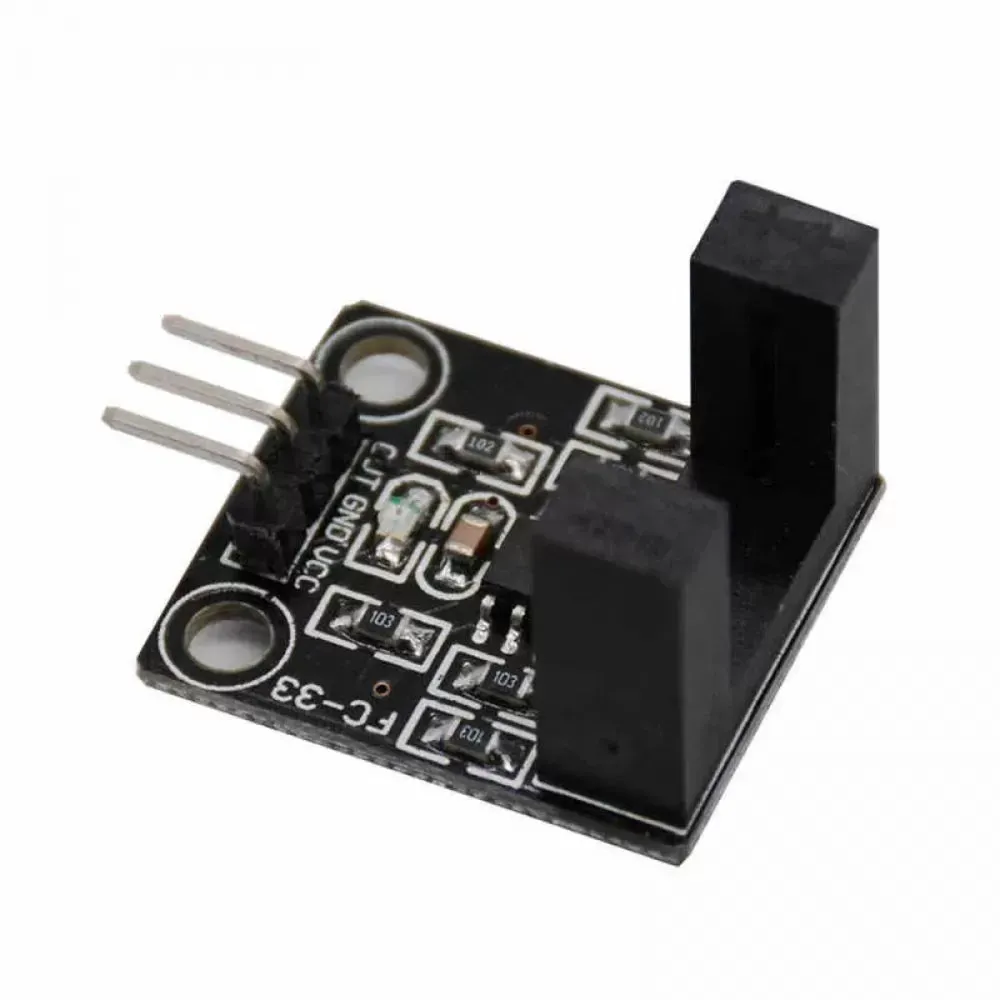

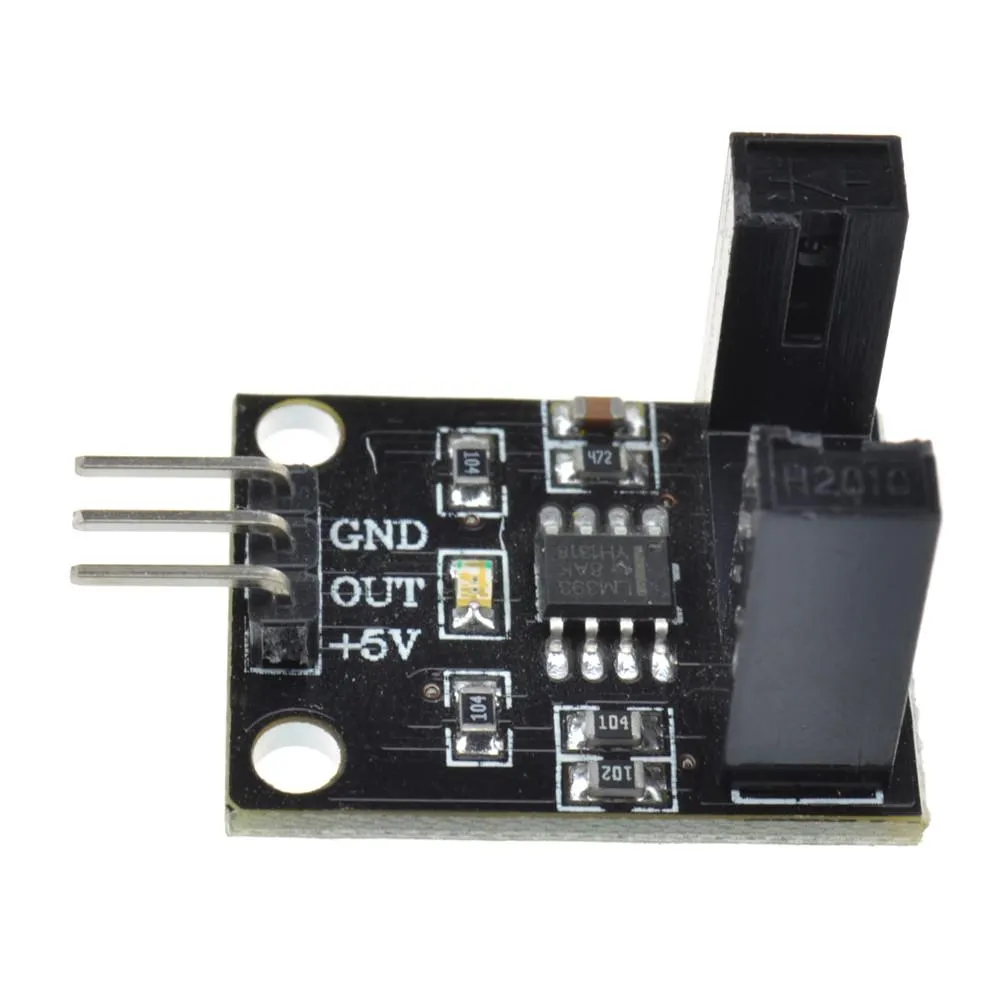

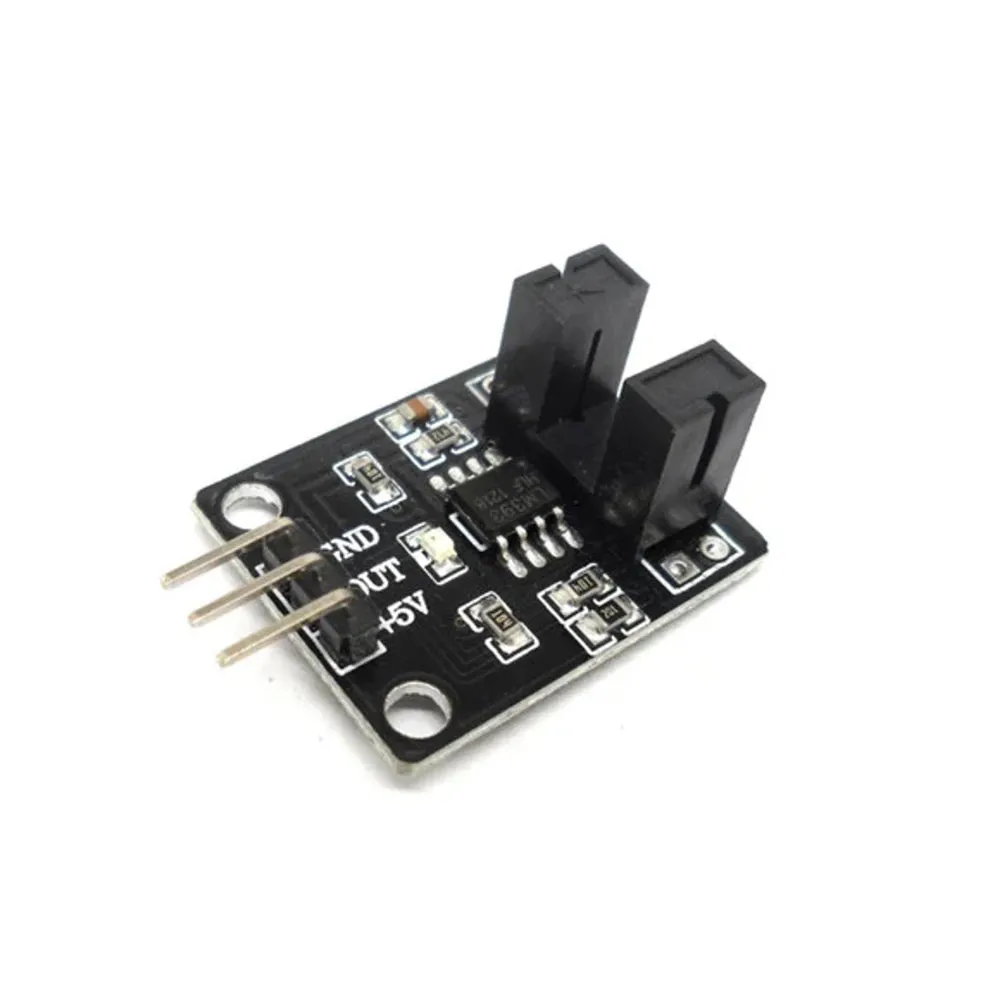

Correlation Photoelectric Infrared Count Slot Sensor
Introducing the Correlation Photoelectric Infrared Count Slot Sensor Module with a 5mm optical coupling slot, offering precise object detection and counting capabilities at an incredibly affordable price.This high-quality sensor module, equipped with an integrated LM393 chip, delivers reliable performance in a compact size. It is perfect for various applications where precise object detection and counting are required.
Upgrade your project with the Correlation Photoelectric Infrared Count Slot Sensor Module and experience reliable object detection at an unbeatable price.
It works as
- OUT Pin Low: No Object Detected, Red LED Lit
- OUT Pin High: Object Detected, Green LED Off
- Connect OUT to MCU for Object Counting or Speed Measurement
Technical Details
- Model: Photoelectric Sensor Module
- Voltage: 3.6V - 5V
- Main Chip: LM393
- Current: 33mA
- Dimensions: 27.6 x 20 x 17mm
- Weight: 3g
- Slot Width: 10mm
Features
- Optical Coupling Slot Width: 10mm
- Signal Output Indication
- Single Signal Output
- Output Switch on Circuit Board
- Valid Signal: Low
- Applications: Workpiece Counting, Industry Counting, Motor Speed Testing
Applications :
- Object Counting: In assembly lines and conveyors.
- Speed Measurement: Measures object speed.
- Position Sensing: Tracks moving parts or objects.
- Industrial Automation: Detects objects in automated systems.
- Security Systems: Monitors access points.
- Robotics: Provides position feedback.
- Library Tracking: Automates book checkout/inventory.
- Traffic Monitoring: Detects vehicles at tolls.
- Elevator Systems: Tracks object passage.
- Packaging: Ensures correct package count.
Physical Attributes of ir sensor counter arduino
- Dimensions (mm) L x W x H : 27.6 x 20 x 17
- Weight (gm): 3
- The width of the optical coupling slot: 10 mm
Package Includes
- 1 x Correlation Photoelectric Infrared Count Slot Sensor Module 10 mm
