FEATURES

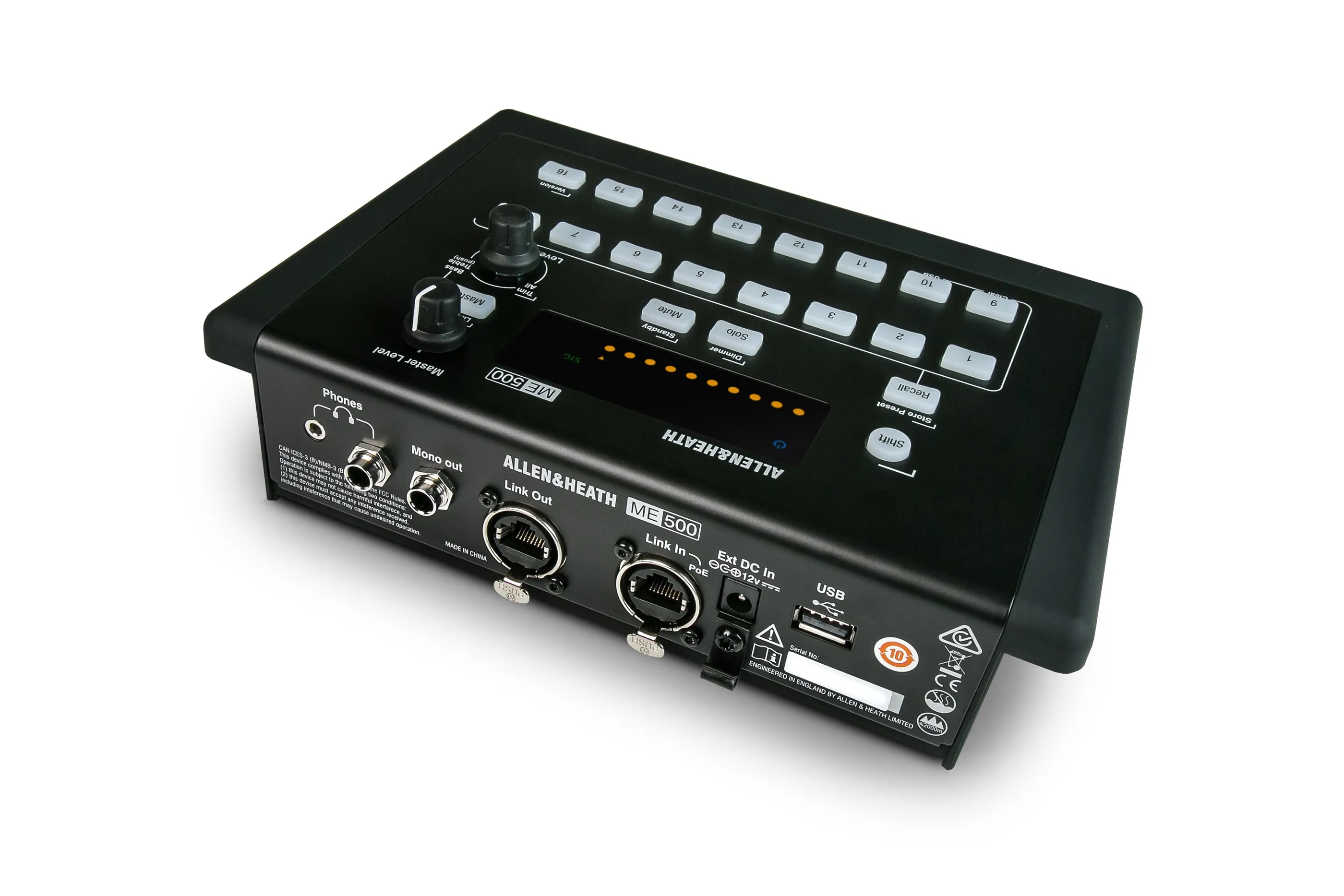

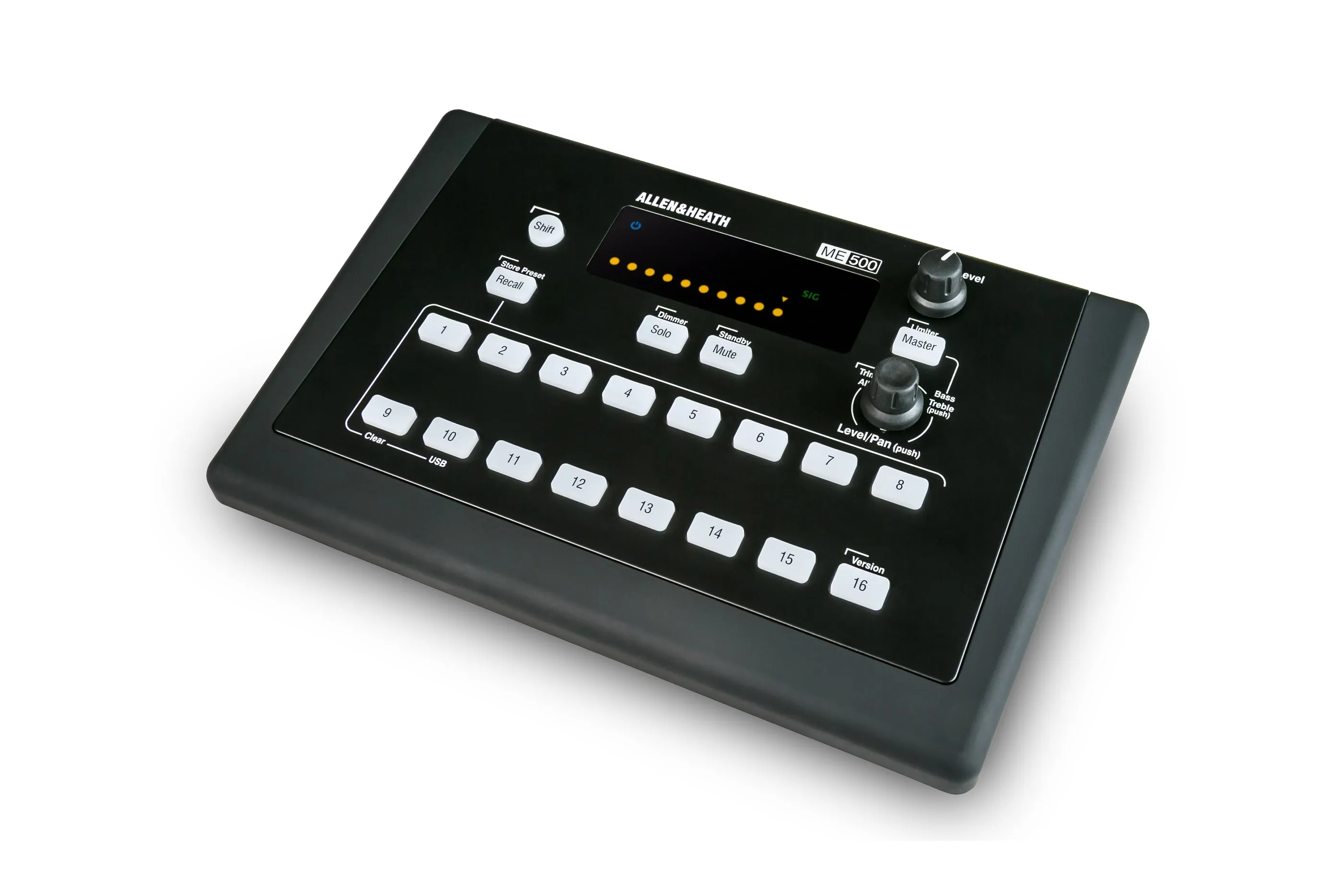

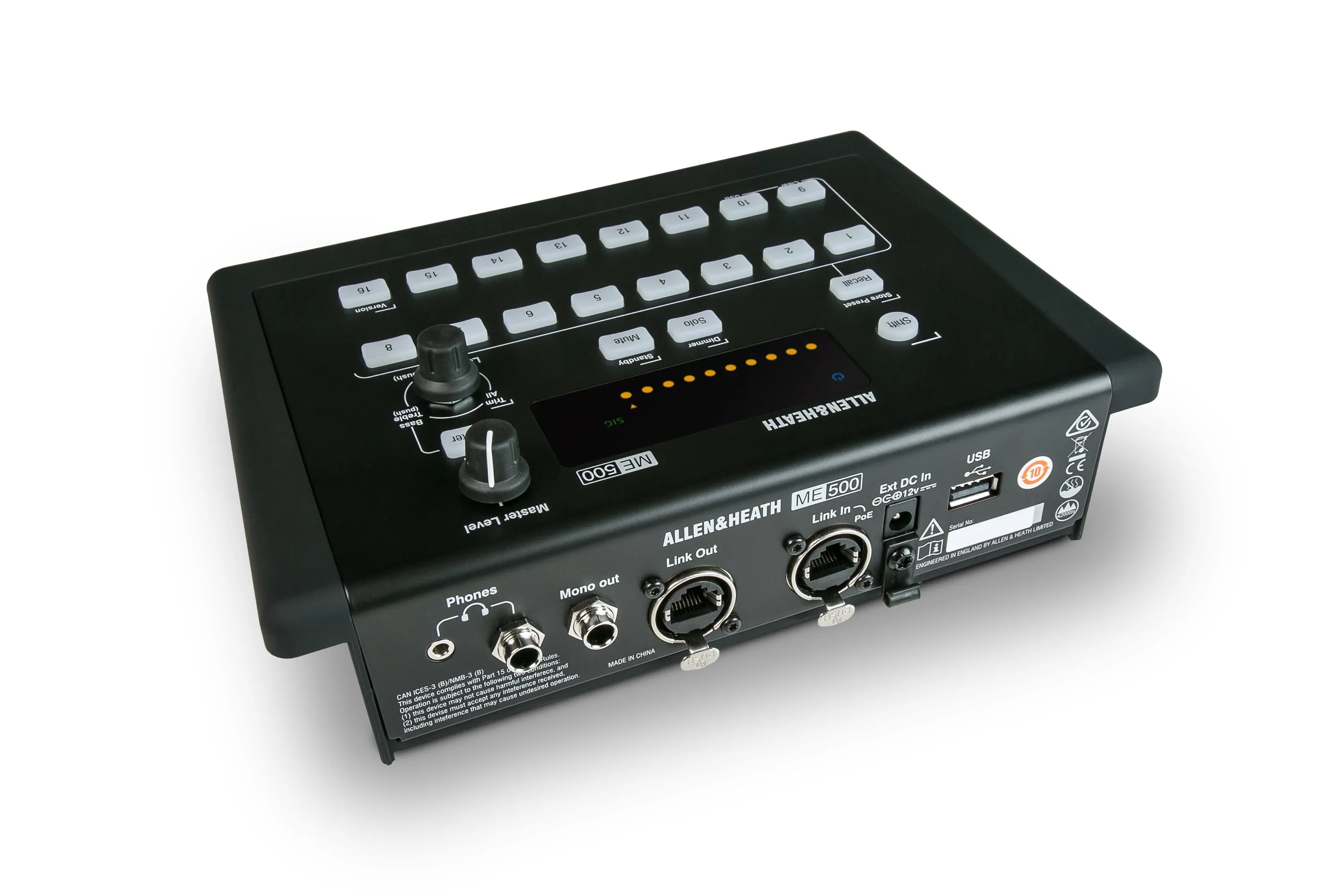

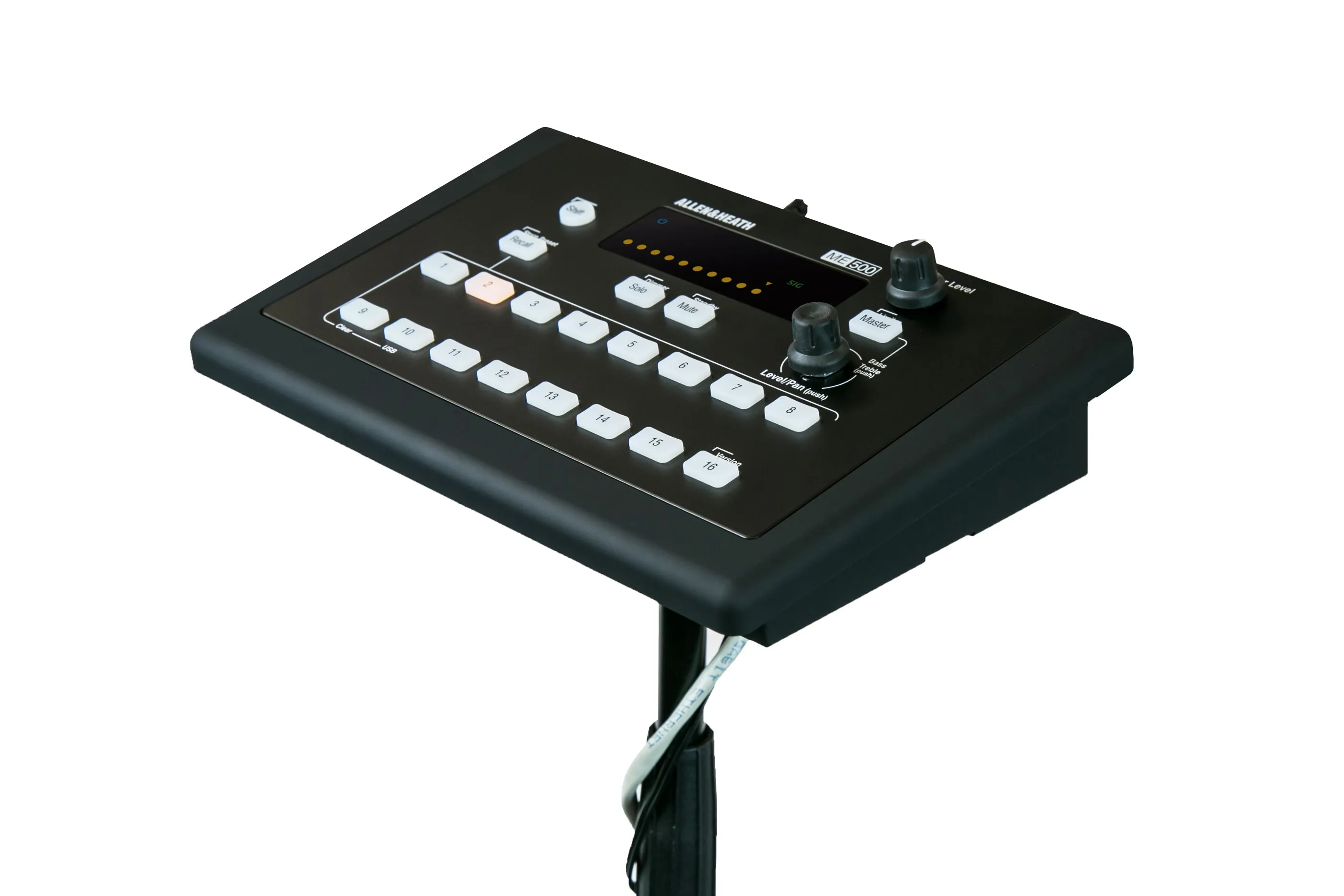

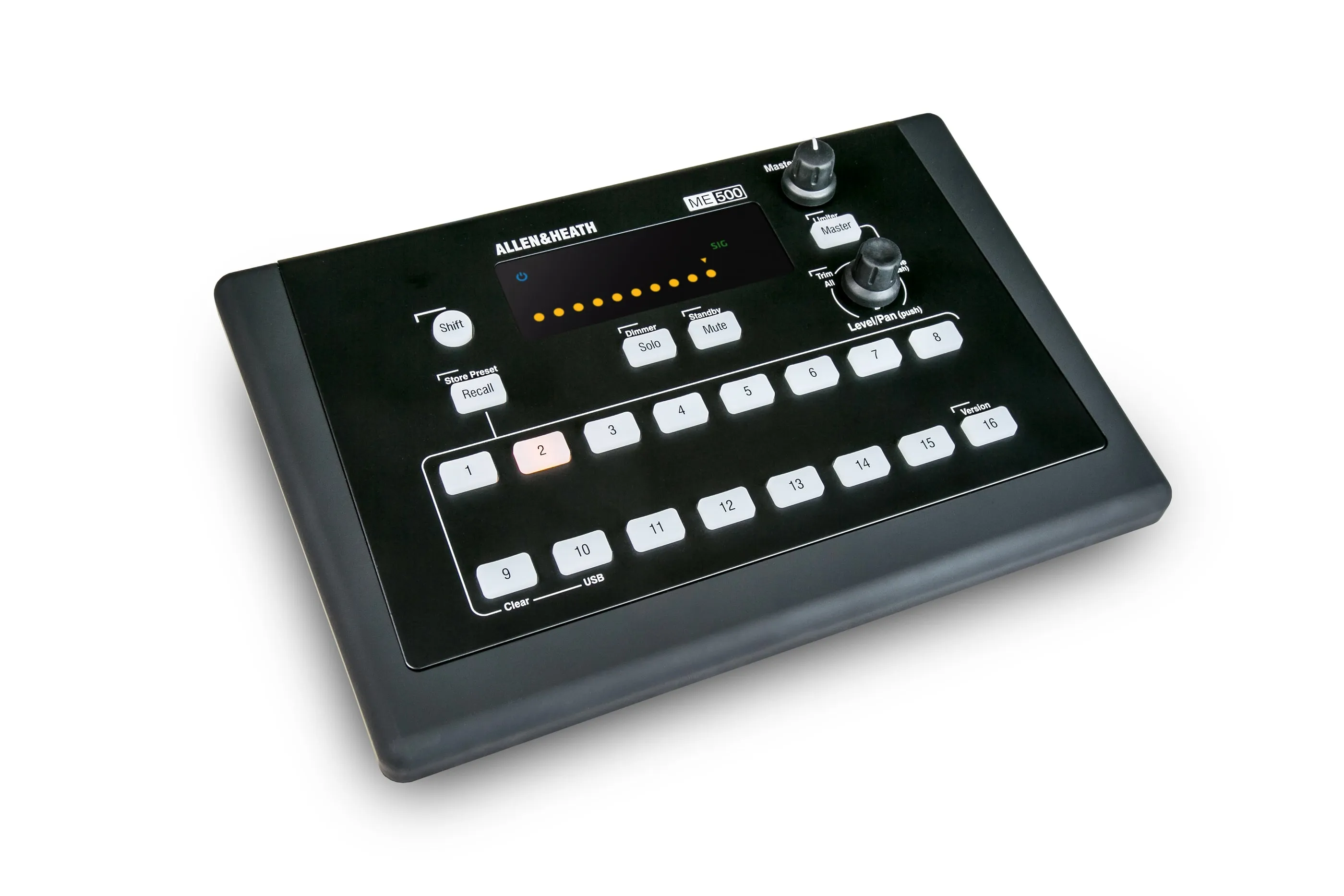

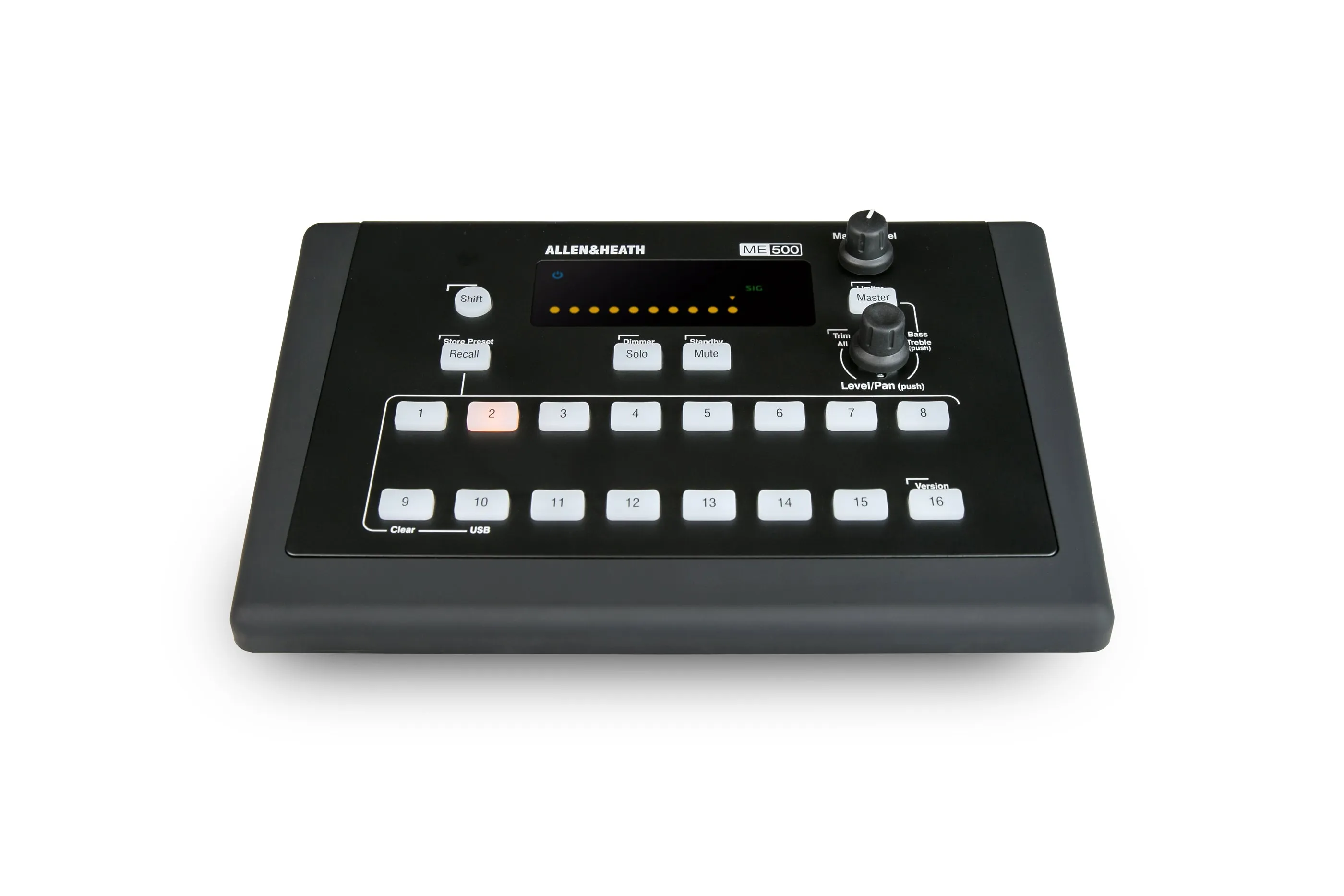

The Allen & Heath ME-500 personal mixer delivers all the sonic control a performer could ask for. And with plug-and-play compatibility for Allen & Heath's dLive, iLive, GLD, and Qu consoles, as well as Aviom monitoring systems, the ME-500 offers the flexibility that system operators need. Artists can mix up to 16 channels in mono or stereo, with a 2-band EQ and master limiter for polished sound quality. Built-in headphone outputs are present for simplicity — there's also a balanced line output for connecting to a stage monitor or IEM transmitter. And when it comes time to scale up your system, you can add as many ME-500 personal mixers as you need.

• 16-input personal mixer for Allen & Heath dLive, iLive, GLD, and Qu digital console systems
• Also compatible with Aviom personal monitoring systems
• Performers can fine-tune their monitor mix with 2-band EQ and master limiter
• Automatic key assignment for easier operation
• Compatible with MADI, Dante, and Waves systems when using the optional ME-U hub and card (sold separately)
• Can be powered over Ethernet or with the included external power supply
• 1/4" and 1/8" headphone outputs
• Balanced 1/4" line output for connecting to floor monitor or in-ear monitor transmitter

SPECIFICATIONS

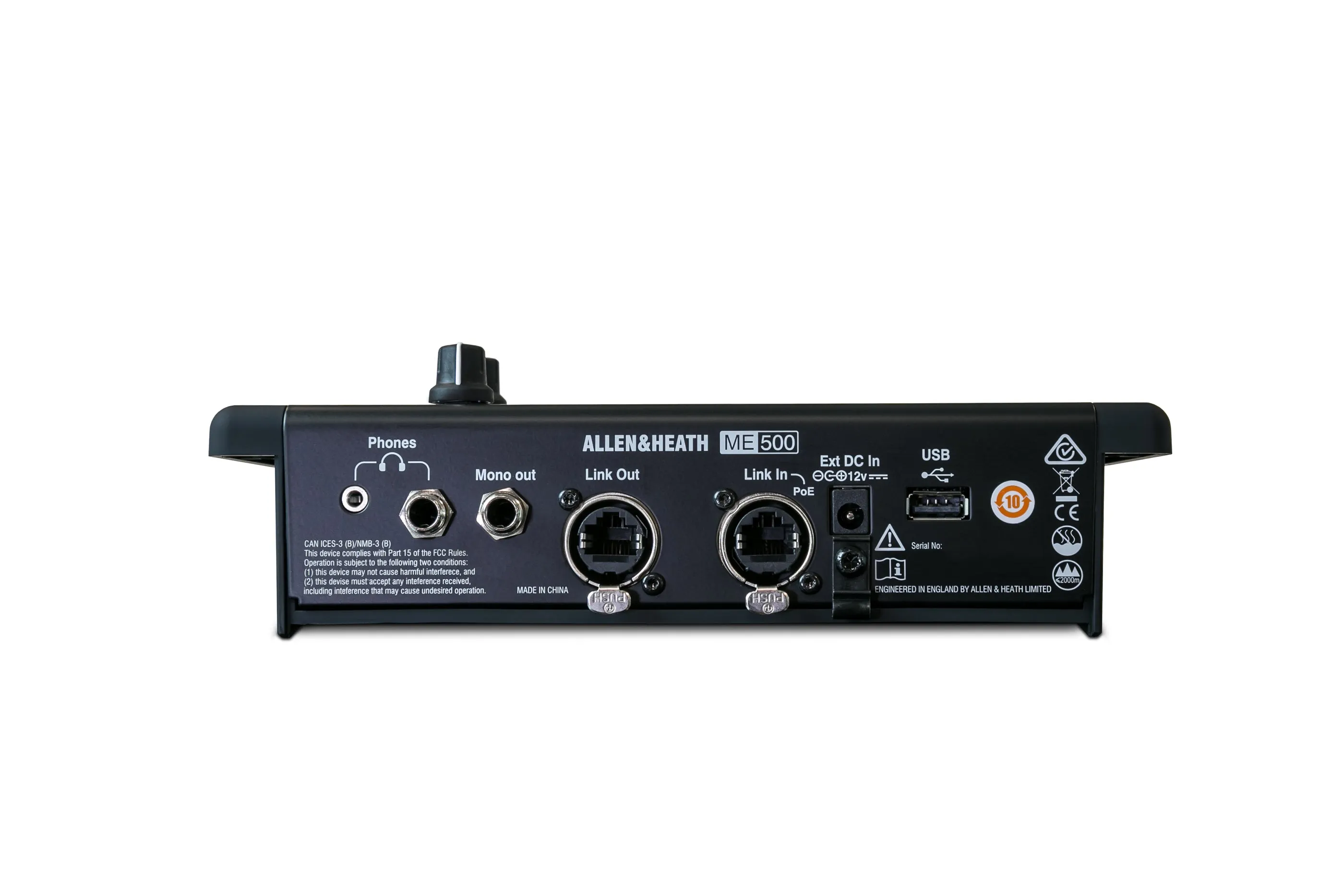

• Number of Ports: 1 x Link In, 1 x Link Out
• Connection Type: EtherCon
• Compatibility: dLive, GLD, Qu, Aviom A-Net 16
• Input Channels: 16 (32 with ME compatible console)
• Output Channels: 16
• Analog Outputs: 1 x 1/4" (mono out)
• Data I/O: 1 x USB Type A
• Headphones: 1 x 1/4" TRS, 1 x 1/8" TRS
• Power Source: 12V DC power supply
• Height: 2.2"
• Width: 9.0"
• Depth: 6.3"
• Weight: 2.4 lbs.
