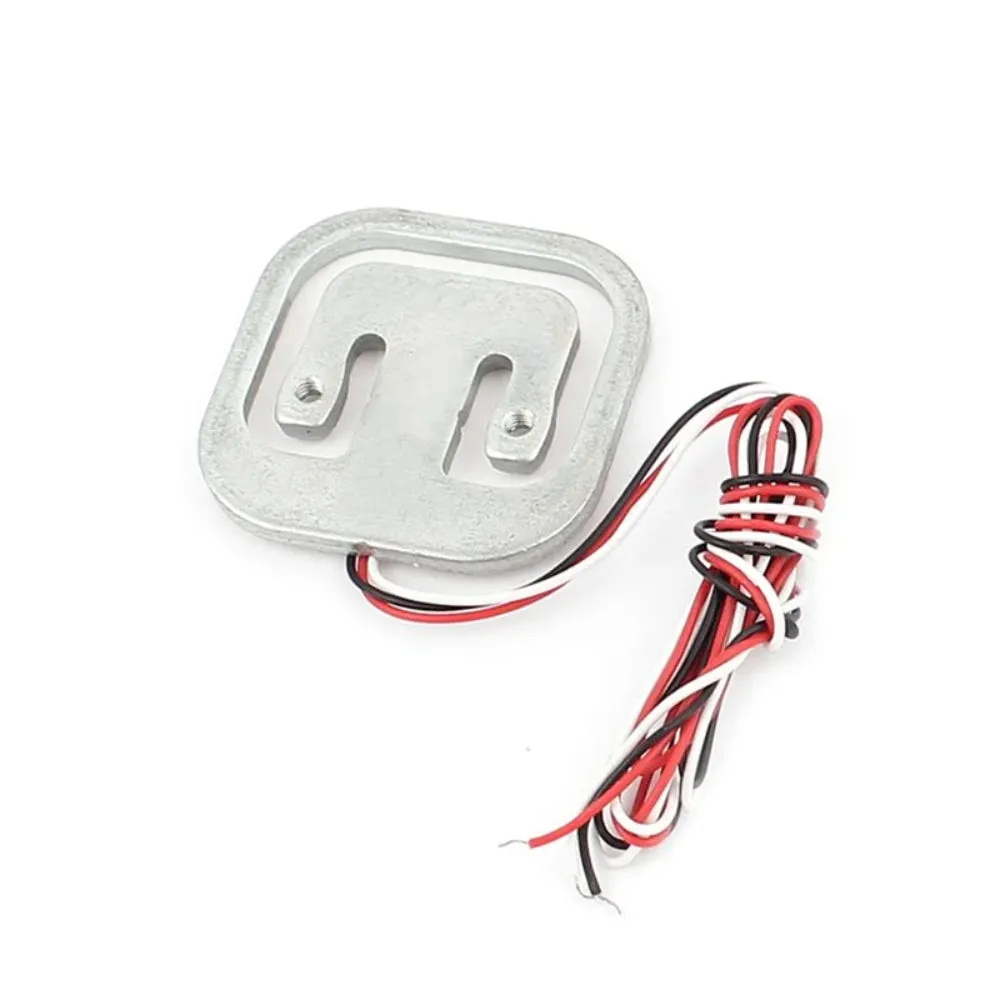

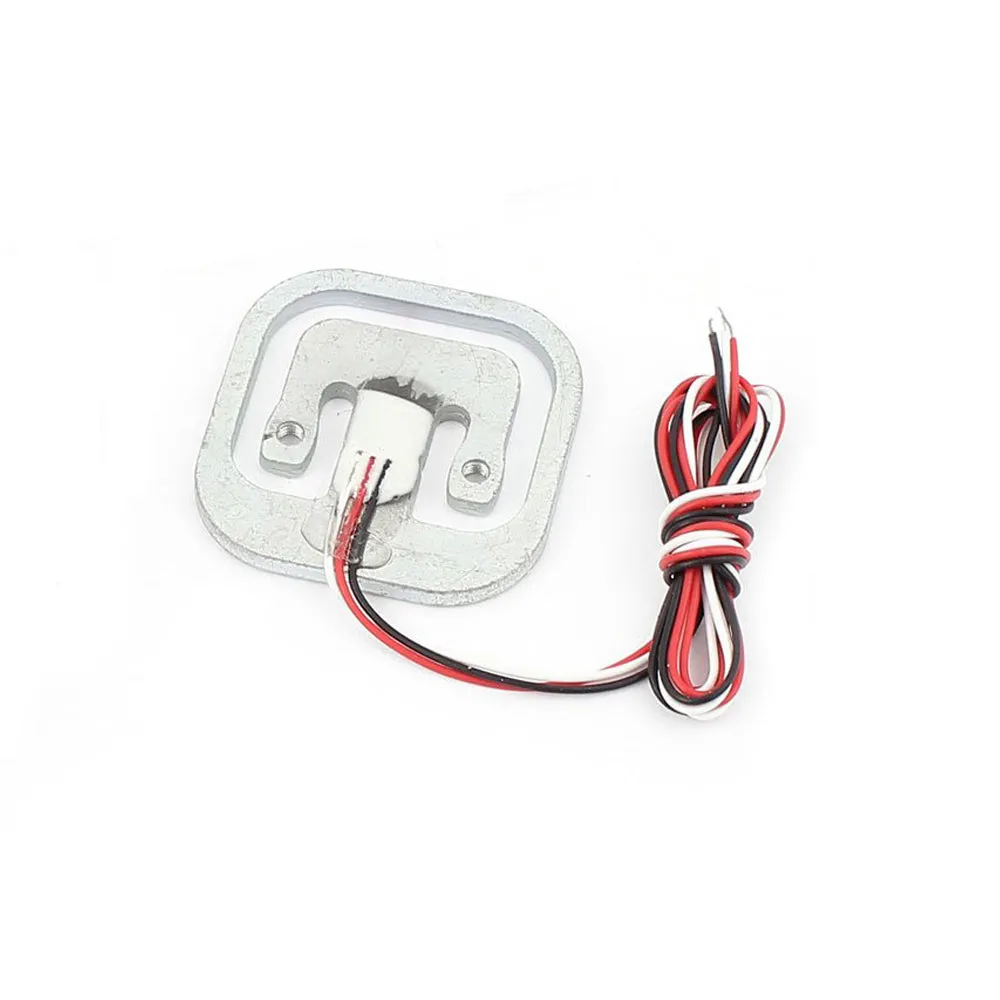

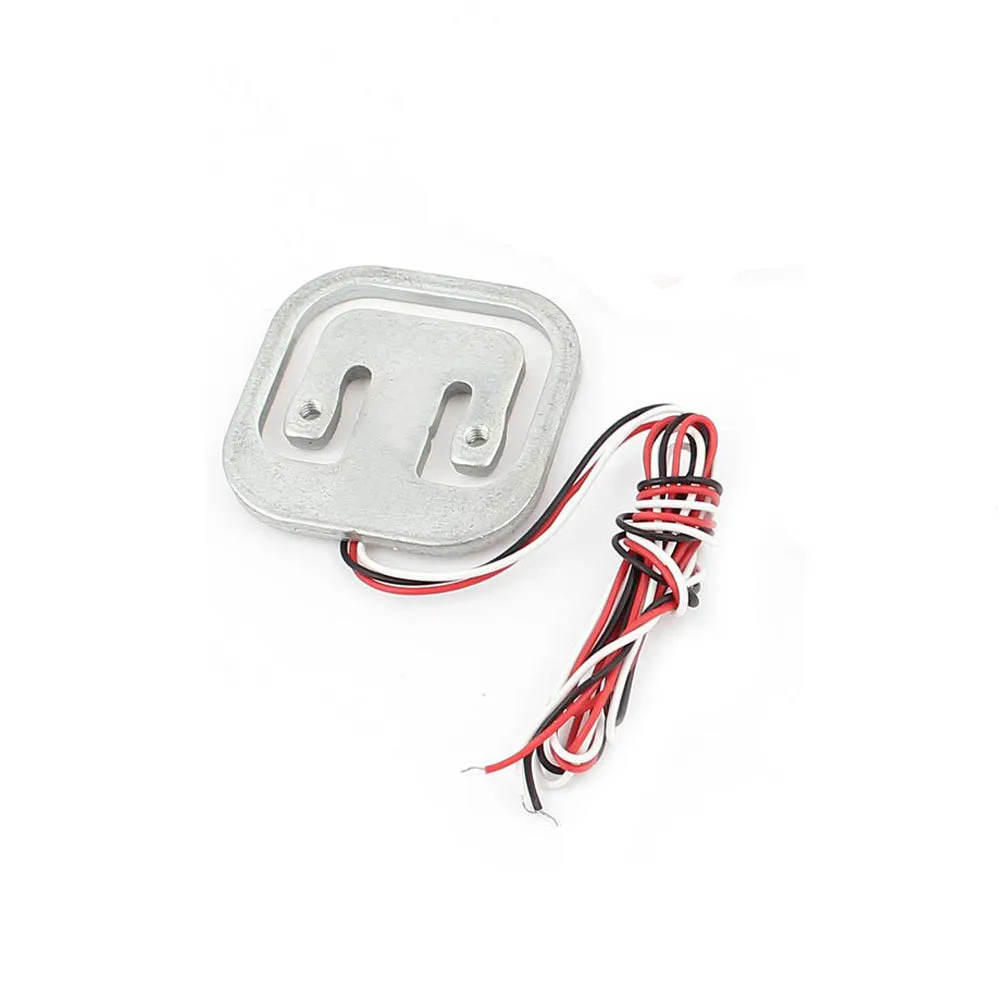

50kg Half-bridge Experiments Body Scale Load Cell Sensor

The 50kg Half-bridge Experiments Body Scale Load Cell Sensor is measuring; the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the intermediate, adhesive coating with white beam arms); and the outer edges to form a shear force in the opposite direction, i.e., middle strain beam bending necessary changes can occur under stress, strain beam side by another force should not be a barrier.

The sensor can be used with the following three methods
1. Using a sensor with an external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for an external resistor.

2. The uses of only two full-bridge sensors measuring range are the range of the two sensors and: 50kgx2 = 100kg.

3. The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg.

Technical Details

Features

Applications :

• Weight Measurement - Used in body scales to measure weight accurately.
• Industrial Weighing - Applied in industries for precise weight measurements in production lines.
• Medical Devices - Used in medical weighing scales and equipment for health monitoring.
• Robotics - Integrated into robotic systems for force and weight detection.
• Load Testing - Used in load testing and structural testing of materials and objects.
• Load Monitoring - Monitors load capacity in machines, vehicles, and heavy equipment.
• DIY Projects - Ideal for use in personal electronics or maker projects requiring weight sensing.

Integration with Arduino

Sample Code

Physical Attributes

Package Includes
