4E's USA – Heat Cool Thermo Mixer
The 4E’s USA Thermo Mixer series offer accurate temperature control and excellent mixing performance. They are ideal for sample incubation, mixing and preservation and designed for a variety of molecular biology applications that require consistent and precise results.
4E's USA – Heat Cool Thermo Mixer - Specifications
- Model: TMX100C
- Speed range: 250 – 3000 rpm
- Orbit: 3.0 mm
- Temperature range: Ambient -15°C to 100°C
- Manufacturer’s warranty
4E's USA Heat Cool Thermo Mixer – Features
One of the key features of the 4E’s USA Thermo Mixer series is their ability to maintain a stable and uniform temperature throughout the incubation process. This is crucial for molecular biology applications that require precise and consistent temperature conditions. By ensuring a reliable temperature environment, these Thermo Mixers enable researchers to obtain accurate and reproducible results.
In addition to temperature control, 4E’s USA’s Thermo Mixers also excel in their mixing capabilities. They utilize advanced technology to ensure efficient and thorough mixing of samples, even those with different viscosities or densities.
This allows researchers to achieve homogeneity in their experiments, reducing the risk of experimental errors or inconsistencies.
4E's USA Heat Cool Thermo Mixer – Highlights
- The instrument heats up quickly and uniformly, controls the temperature precisely and is highly stable
- Microprocessor control ensures superior temperature stability and uniformity
- Brushless DC motor, low-noise, durable and maintenance-free
- LCD touchscreen displays the current temperature and speed information
- Accurate temperature calibration
- Auto resumption after power failure
- Interchangeable modules with automatic detection function
- Steps can be repeated in the repeat mode

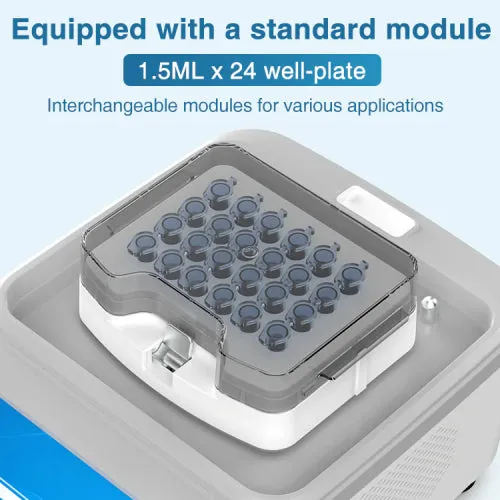

- Comes with a standard module (1.5ML x 24 well-plate)
- Modules can be customized for various specifications and sizes
4E's USA Heat Cool Thermo Mixer – Additional Specifications
| Model | TMX100C |
| Type | Heating/Cooling/Mixing |
| Speed range | 250 to 3000 rpm |
| Orbit | 3 mm |
| Temperature range | Ambient-15℃ to 100℃ |
| Temperature accuracy | ±0.2°C at 20–40°C, ±0.5°C at＜20℃ or ＞40℃ |
| Temperature stability | ±0.5℃ |
| Temperature uniformity | ±0.5℃ |
| Temperature resolution | 0.1℃ |
| Heating rate (4 options) | Full Power，5℃/min.，2℃/min.，1℃/min. |
| Cooling rate (4 options) | Full Power，2℃/min.，1℃/min.，0.5℃/min. |
| Calibration | 4 Points (10°C/40°C/70°C/95°C) |
| Display | 7-inch color touchscreen |
| Sample capacity | 0.1 to 50 mL |
| Standard module | 1.5 mL x 24-well plate |
| Cycle times | Up to 999 times |
| Timer | 0-99h 59min 59s |
| Output | 300W (max) |
| Dimension (L x W x H) | 332 x 227 x 185 mm (including standard module, without lid) |
| Weight | <10 kg |

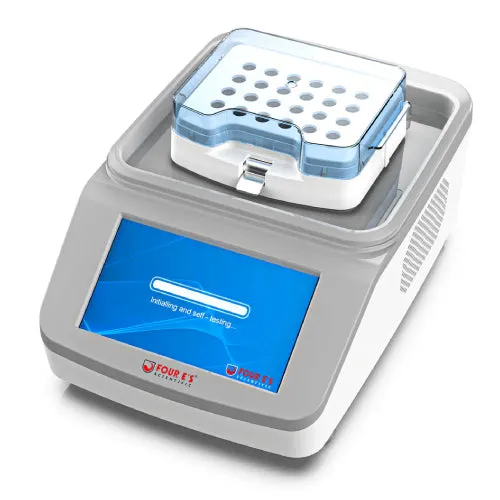

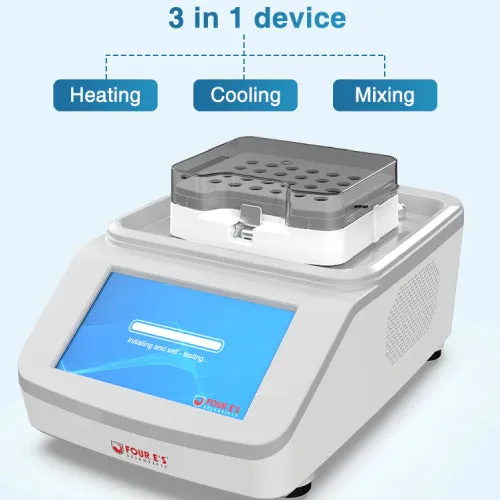

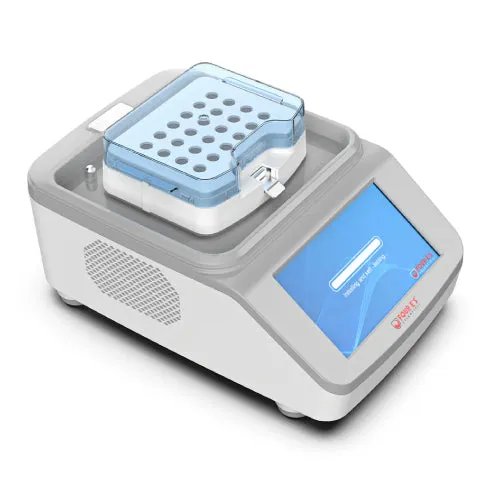

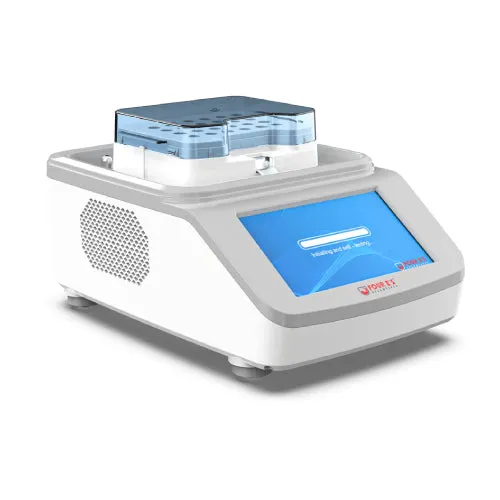

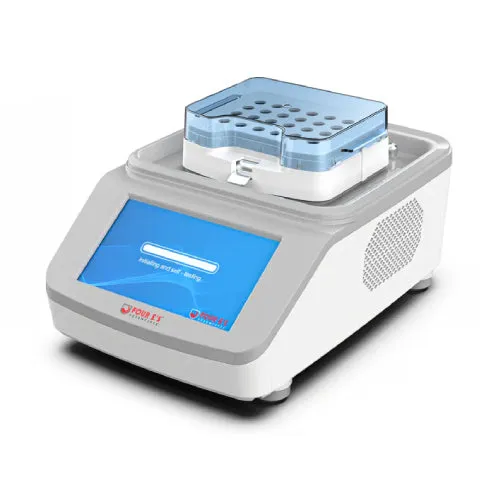

4E's USA Heat Cool Thermo Mixer – Pictures
Since we often stock multiple units of each model, we may not feature photos of every unit. However, if you request, we will provide photos of your specific equipment after we test and clean it.
For inquiries about the 4E's USA Heat Cool Thermo Mixer, call us at 978-521-2221 or fill out the form on this page.
