The Triplett Model CFM400 4" (100mm) Large Vane CFM/CMM Thermo-Anemometer measures Air Velocity up to 5900ft/min (30m/s), Air Flow (Volume) to 99999 CFM/CMM, and Air Temperature 140°F/60°C) for use in HVAC System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics and many other applications.
DESCRIPTION

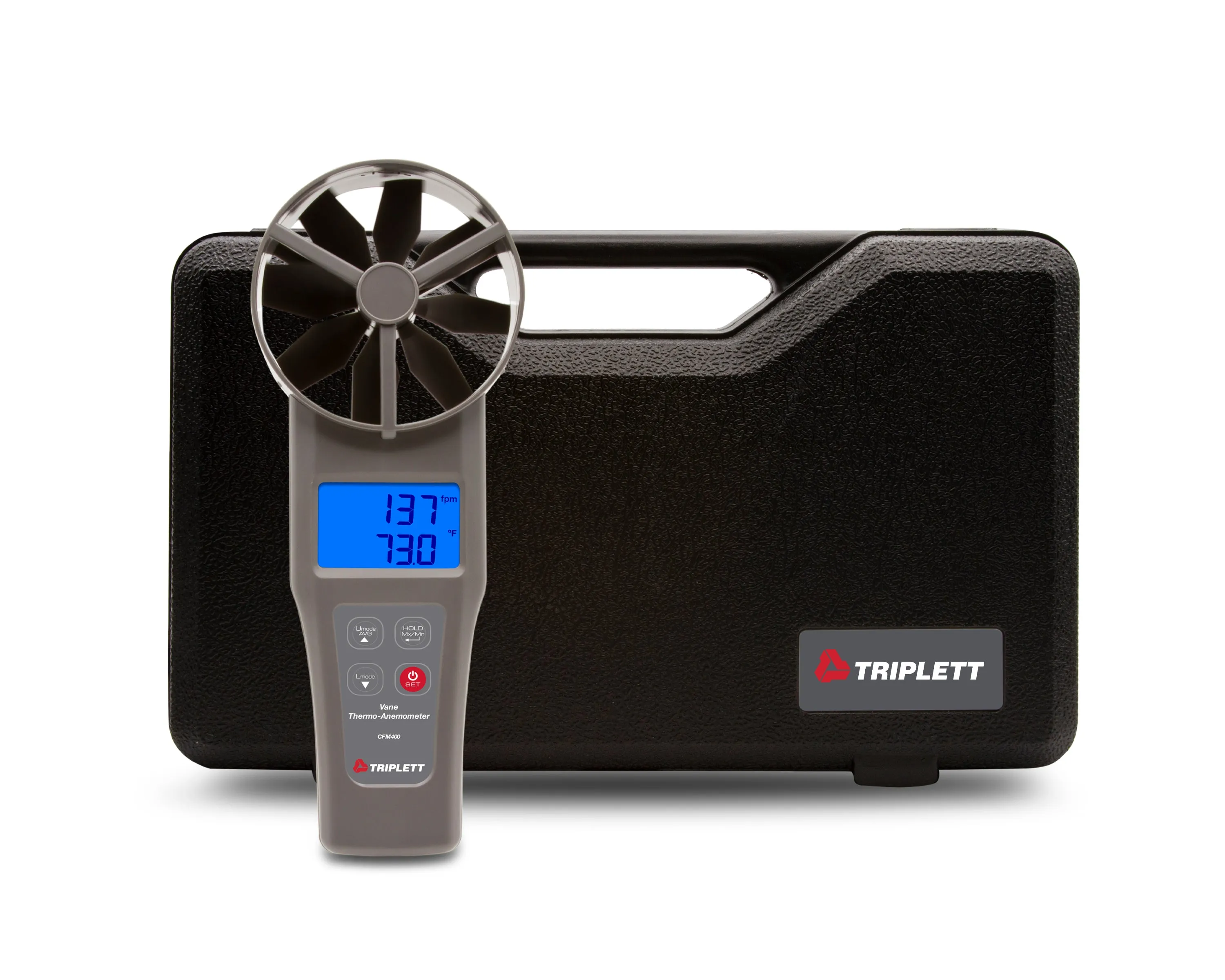

The Triplett Model CFM400 4" (100mm) Large Vane CFM/CMM Thermo-Anemometer measures Air Velocity up to 5900ft/min (30m/s), Air Flow (Volume) to 99999 CFM/CMM, and Air Temperature 140°F/60°C) for use in HVAC System installation and maintenance, cleanrooms, kitchen exhaust systems, wind power monitoring, construction, sailing/boating, vehicle aerodynamics and many other applications. Measurements are displayed on a dual-backlit easy-to-read LCD display. Min/Max recalls highest and lowest readings plus Multi-Point Average and Timed Average modes. Data Hold freezes the reading on the display when taking measurements in areas where the display cannot be easily viewed. The auto power off (with disable) function conserves battery life. Includes 4 AAA batteries and a hard carrying case. 1-year warranty.

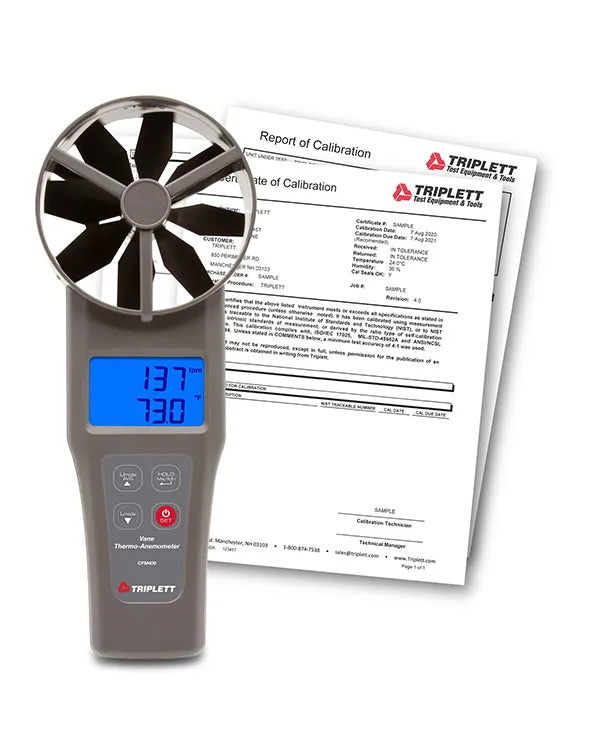

CFM400-NIST Comes with a Certificate of traceability to NIST standards
Please add 11 business days lead-time for the NIST calibration process
CATEGORY:
Features
Specifications
| CFM400 | |
| Air Velocity | Range (resolution) |
| 40 to 5900 ft/min (1ft/min) | |
| 0.2 to 30.00m/s (0.01m/s) | |
| Accuracy | ±1.5% |
| Air Flow | Range (resolution) |
| 0 to 99999CFM (0.1CFM) | |
| 0 to 99999CMM (0.1CMM) | |
| Air Temperature | -4 to 140°F/-20 to 60°C (0.1°F/°C) |
| Accuracy | ±1.1°F/0.6°C |
| Power | 4 x AAA batteries |
| Dimensions | 10.6 x 4.2 x 2" (269 x 106 x 51mm) |
| Weight | 1.6lbs (725g) |
Downloads
FAQs
-
Q. What is the CFM400 Large Vane Anemometer?
A. The CFM400 Large Vane Anemometer is a large vane anemometer by Triplett, designed to measure airflow, air velocity, temperature, and calculate air volume in CFM and CMM.
-
Q. What are the applications of the CFM400 Large Vane Anemometer?
A. It is commonly used for HVAC systems, ventilation, industrial processes, environmental monitoring, and air quality assessments.
-
Q. How does the CFM400 Large Vane Anemometer measure airflow and air velocity?
A. The CFM400 Large Vane Anemometer uses the large vane to capture the airflow and velocity, and its digital display provides real-time readings.
-
Q. Can the CFM400 Large Vane Anemometer calculate air volume in CFM and CMM?
A. Yes, the CFM400 Large Vane Anemometer has the capability to calculate air volume in both cubic feet per minute (CFM) and cubic meters per minute (CMM).
-
Q. Does the CFM400 Large Vane Anemometer come with any additional accessories?
A. The CFM400 Large Vane Anemometer package includes a carrying case for easy portability and protection during transportation.
